Part Number: 23745

Manufacturer's Part Number: PH-5L-HW

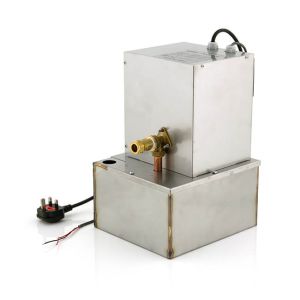

High Temperature & Pressure Relief Pump

Pump House, automatic high temperature hot water pump with 5 litre stainless steel tank, volt free high-level alarm/safety switch, 240 V motor with thermal overload protection, 1.8 m long cable, brass non-return valve, 25 mm inlet port and 15 mm discharge connection. Note: Discharge pipe should rise vertically (max. 8 m) on leaving the pump then fall to a drain point. Any horizontal pipe will reduce the lift height.
Alarm Contact: Volt free switch; Rating: 3A max.

Product Specification

Brand Pump House
Capacity 5 Litres
Connection 25 Mm Inlet Port
Dimensions H 350 X W 260 X D 190 Mm
Discharge Rate 32 L/m
Flow Rate 32 L/m
Material Stainless Steel
Max. Head 8 M
Max. Water Temperature 100° C
Off Level 197 Mm
On Level 252 Mm
Outlet Connection 15 Mm Compression
Power Supply 240 V, 50 Hz
Tank Capacity 5 Litres
Thermal Protection Yes
Type T&P Relief Pump
Weight 7 Kg
