Honeywell Home Sundial RF² Central Heating Control Pack 3

£329.53 £274.61
£329.53 £274.61
More product options available

Part Number: 20039

Manufacturer's Part Number: Y9420S2005

Honeywell Home Sundial RF² Central Heating Control Pack 3

For new and existing stored hot water and heating systems using time control and room thermostat. With no existing room or cylinder thermostat the wiring can be used to provide boiler interlock. RF range is up to 30 m in residential buildings.
Time setting: time of day - 1 minute

Program time changes - 10 minutes

Time display: 24 hour or AM/PM format

Thermostat Power supply: 2 x AA Alkaline Batteries





Product Specification

Brand Honeywell Home
Contact Rating 3(3)A at 230 V AC, SPDT
Dimensions ST9420C : H 145 x W 99 x D 35 mm
DT92E : H 90 x W 90 x D 29 mm
CS92A : Sensor : H 80 x W 42 x D 50 mm
Transmitter: H 90 x W 90 x D 29 mm
Display Backlit

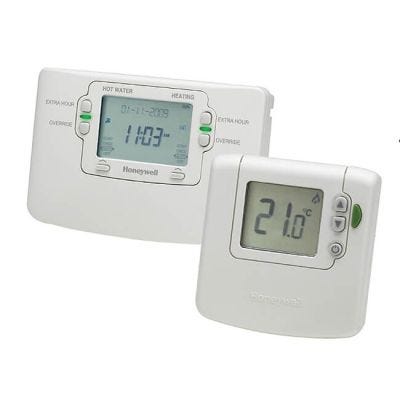

Kit Contents ST9420C wireless enabled programmer.

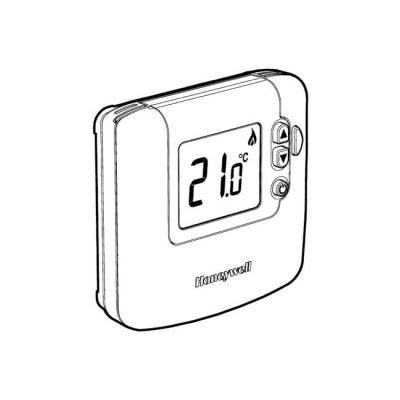

DT92E wireless wall mounted or free standing room thermostat with TPI control, ECO button, ‘ON’ indicator and frost protection.

CS92A wireless cylinder thermostat has the hot water temperature set on the programmer.
Power Supply 230 V AC, 50 Hz
Sub Brand honeywell
Suitable Application New and existing stored hot water and heating systems using time control and room thermostat
Temperature Range DT92E : 5 to 35° C , CS92A : 40 to 85° C
Type Heating Control Pack
