ICID Plus Vent Pipe - 125 x 500mm

£99.12 £82.60
£99.12 £82.60
More product options available

Part Number: 20798

Manufacturer's Part Number: DN8A002125

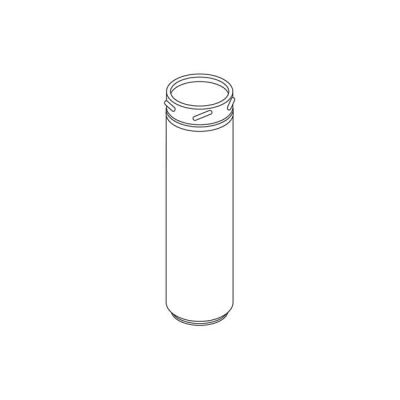

ICID Plus Vent Pipe - 125 x 500mm

Twin wall insulated flue system specifically designed to operate continuously with temperatures up to 450°C.
Certified for corrosion resistance on gas, oil, wood and solid fuel, 4 Hour Fire Rating to BS 476-20 and ‘soot fire’ resistant. Twist-lock bayonet jointing system, secured by a locking band. Inner casing is constructed from laser welded 316L stainless steel, outer stainless steel 304 (painted black where stated) casing is load bearing. Inner liner is free to expand independently to accommodate temperature changes. Inner liner has an inward bead at the female end which acts as a capillary break preventing moisture being drawn through the joint. 25 mm of high density Rockwool insulation maintains flue gas temperature, maximising efficiency, improving flue draught on start up, minimises condensation and provides a low external case temperature.
CE Certified to BS EN 1856-1.
HETAS listed.
Manufactured by a BS EN ISO 9001 registered company.

Supplied with one locking band.

Nominal i.d. : 125 mm
Approx. o.d. : 180 mm

Product Specification

Brand Schiedel
Sub Brand ICID Plus
Standards BS 476-20, BS EN 1856-1, BS EN ISO 9001
For Use With Gas, Oil, Wood & Solid Fuel
Hetas Listed Yes
Length 500 mm
Material 316L Stainless Steel
Operating Temperature 450°C
Size 125 mm
Type Vent Pipe
Wall Type Twin wall

Ask a Question

Questions and Answers - FAQ

Product Options

Product and product options
Unit Price
QTY

20794

£62.05 £51.71

20796

£68.78 £57.32

20800

£139.58 £116.32

20802

£211.74 £176.45

20795

£66.77 £55.64

20797

£73.51 £61.26

20799

£107.22 £89.35

20801

£147.68 £123.07

20803

£244.84 £204.03
