Part Number: 20858

Manufacturer's Part Number: 92930180

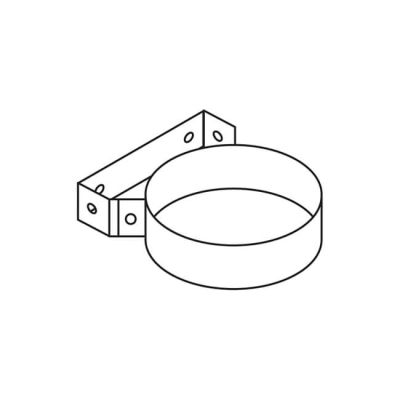

ICID Plus Wall Band - 125mm x 60mm

Twin wall insulated flue system specifically designed to operate continuously with temperatures up to 450°C.
Certified for corrosion resistance on gas, oil, wood and solid fuel, 4 Hour Fire Rating to BS 476-20 and ‘soot fire’ resistant. Twist-lock bayonet jointing system, secured by a locking band. Inner casing is constructed from laser welded 316L stainless steel, outer stainless steel 304 (painted black where stated) casing is load bearing. Inner liner is free to expand independently to accommodate temperature changes. Inner liner has an inward bead at the female end which acts as a capillary break preventing moisture being drawn through the joint. 25 mm of high density Rockwool insulation maintains flue gas temperature, maximising efficiency, improving flue draught on start up, minimises condensation and provides a low external case temperature.
CE Certified to BS EN1856-1.
HETAS listed.
Manufactured by a BS EN ISO 9001:2008 registered company.
60 mm from wall.

Product Specification

Brand Schiedel
Standards Fire Rating To BS 476-20, CE Certified To BS EN1856-1. HETAS Listed.
For Use With Gas, Oil, Wood & Solid Fuel
Hetas Listed Yes
Material 316L Stainless Steel
Operating Temperature 450°C
Size 125 X 60 Mm
Sub Brand ICID Plus
Type Wall Band
Wall Type 60 Mm From Wall
