Part Number: 20354

Manufacturer's Part Number: 60010CP

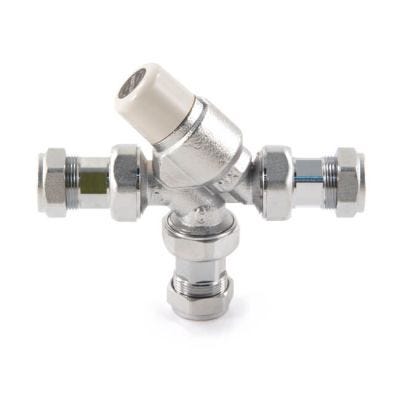

Inta Thermostatic Mixing Valve - 15mm

L Mix & Tail Pieces.

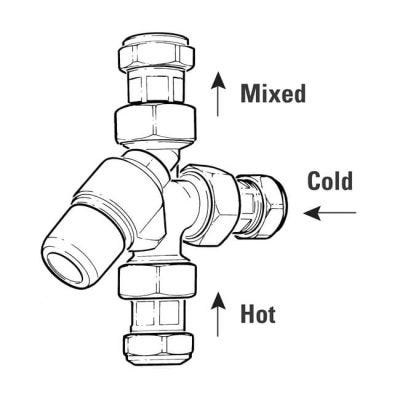

Deliver safe, blended hot water to taps, showers, bidets and other water outlets. Unlike T-pattern valves the hot and the cold water ports are perpendicular, which reduces the need for pipework modifications and helps to save a significant amount of installation time - especially in retro fit applications. Non-return valves supplied in hot and cold inlet fittings.

Specification:
Temperature range: 30 to 50°C.(± 2°C)

Max. inlet temperature: 85°C.

Max. working pressure: 10 bar. (static)

Minimum inlet pressure: 0.2 bar. (dynamic)

Flow rate at 1bar differential: 15 mm: 25 litres/m

Product Specification

Brand Inta
Inlet Temperature Max: 85°C
Min. Static Pressure 0.2 Bar
Pressure 10 Bar
Size 15 Mm
Sub Brand Inta
Temperature Range 30 To 50°C
Type Thermostatic Mixing Valve
