Part Number: 22908

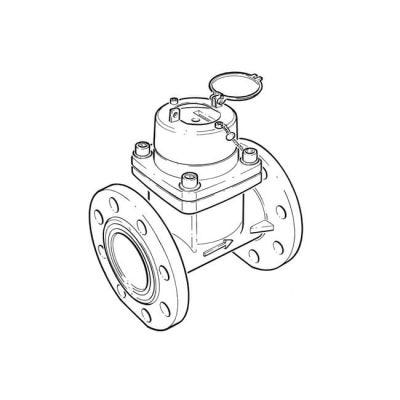

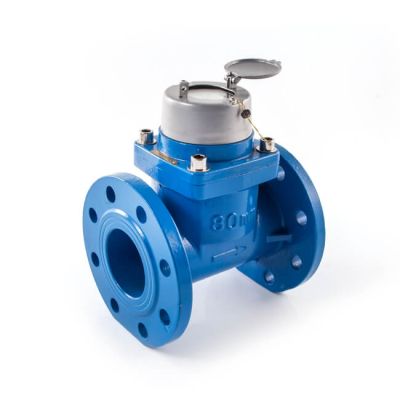

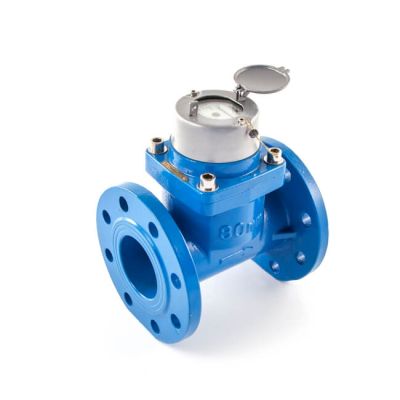

Irrigation Cold Water Meter - 3" DN80
Tangential water meter for cold water irrigation purposes, dry dial, magnetic transmission and negligible head loss. Suitable for measuring of dirty water (solid sediments).
Class A horizontal.See More >
Product Specification
| Standards | BS ISO 7005-1, BS EN 1092-2 |
| Application | Measuring of dirty water (solid sediments) |
| Bore | 3" DN80 |
| Connection | PN16 |
| Hot Water Meter Max Temp | 50° C |
| Material | Iron |
| Max. M3/H | 150 |
| Max. Operating Pressure | 16 bar |
| Meter Dimensions | Face to face - 225 mm |
| Nominal M3/H | 6 - 150 |
| Size | DN80, 3" |
| Type | Cold Water Meter |
| Weight | 15 kg |
