Part Number: 22448

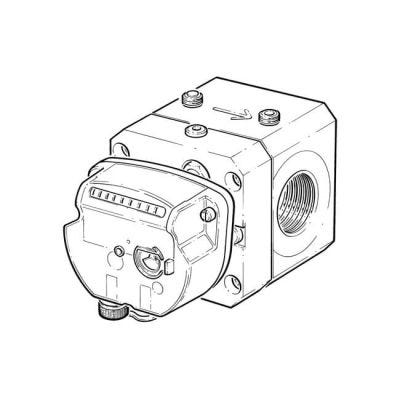

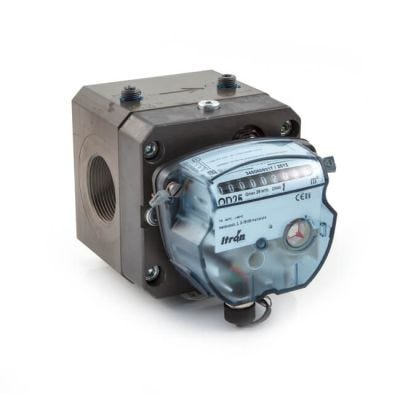

ITRON Quantometer Delta QD60 Rotary Gas Meter
Delta QD volumetric rotary meters are designed to measure natural gas, various filtered non-corrosive gases and compressed air. Features a 9-digit mechanical totaliser, aluminium hard anodised housing, dynamically balanced pistons and stainless steel ball bearings.
Complies with PED and ATEX Directive. Meter Metrology is not influenced by installation conditions so can be used without installing a straight pipe length before the meter.
Starting flow : <0.035 m³/h.
LF transmitter : reed switch.
Complies with PED and ATEX Directive. Meter Metrology is not influenced by installation conditions so can be used without installing a straight pipe length before the meter.
Starting flow : <0.035 m³/h.
LF transmitter : reed switch.
Product Specification
| Accuracy | <±1.5% on the complete flow range |
| Ambient Temperature | -30 to 60°C |
| Brand | Delta QD |
| Capacity | 60 m³/h |
| Connection | 1.1/2" |
| Dimensions | 126 mm x 121 mm x 172 mm |
| Display | Mechanical |
| Flow Rate | 2 to 60 m³/h |
| Height | 126 mm |
| Material | Aluminium |
| Max. Operating Pressure | 16 bar |
| Meter Connection Size | 1.1/2" DN40 |
| Meter Type | Rotary |
| Nominal Bore | 1.1/2" DN40 |
| Pulse Rate | 0.01 m³/pulse |
| Suitable Application | Turbine meters suitables & LPG with a low pressure drop. |
| Test Point | No |
| Type | Commercial Meter |
| Weight | 4 kg |
