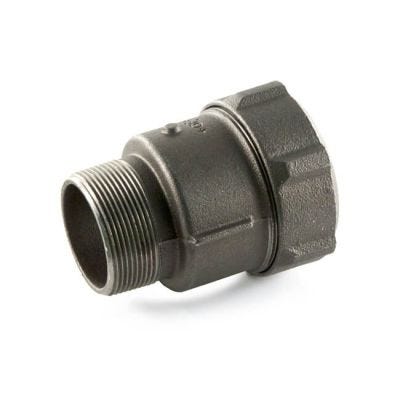

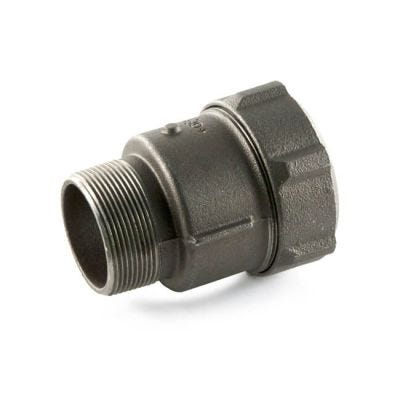

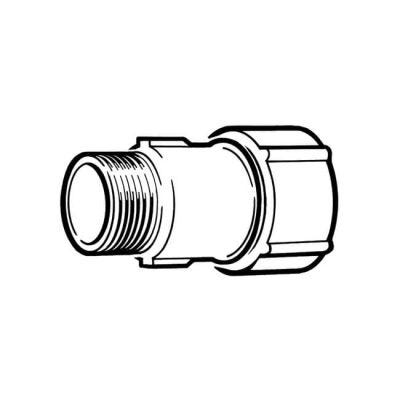

Primofit® Adaptor Gas 1/2" BSP M x 20mm MDPE Black

£45.84 £38.20
£45.84 £38.20
More product options available

Part Number: 9748

Manufacturer's Part Number: 775201101

Primofit® Adaptor Gas 1/2" BSP M x 20mm MDPE Black

Primofit adaptor supplied with pipe stiffener. The joint will cope with a misalignment of the connected pipe of up to 6° inclusive angular deflection.
Seal material: Nitrile compound.
Maximum pressure 7 bar at 20°C (maximum operating pressure is dependent on MDPE pipe specification and standard).

Suitable for Natural Gas and LPG.

Product Specification

Angular Deflection
Brand Primofit
Connection BSP M x MDPE
Finish Black
Material Malleable Iron
Pressure 7 bar
Size 1/2" x 20 mm
Sub Brand Primofit
Suitable Application To join yellow gas MDPE pipe to steel pipe (steel pipe to BS EN 10255:2004 (BS 1387:1985), DIN 2440/2441/2442/2448 Series 1 or 2458 Series 1). For use with Natural Gas and LPG.
Temperature Range -20°C to 40°C
Thread Type BSP TM
Type Adaptor
