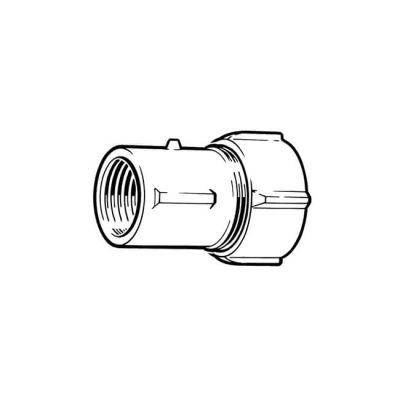

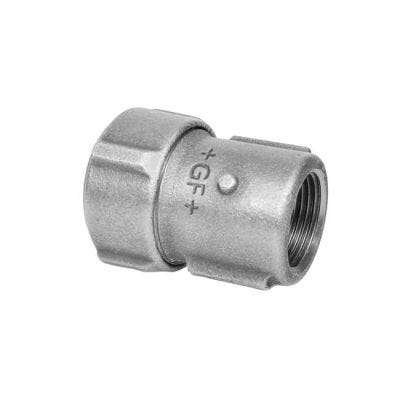

Primofit® Adaptor Gas 3/4" BSP x 25mm MDPE Galvanised
The Primofit® Adaptor Gas 3/4" BSP x 25mm MDPE Galvanised is a reliable compression fitting designed to join yellow gas MDPE pipes or transition them to steel pipes, meeting BS EN 10255 and BS EN 10220 standards. This fitting is manufactured by a BS EN ISO 9001 registered company, ensuring high-quality construction. It is ideal for installations involving natural gas or LPG, with easy-to-follow instructions and no need for special tools.
Constructed from malleable iron with a galvanised finish, this adaptor offers enhanced corrosion resistance. The fitting supports an angular deflection of up to 6°, making it suitable for accommodating slight misalignments in connected pipes.
The connection includes a male BSP taper to ISO 7-1 and a female BSP parallel to ISO 7-1, allowing for secure and precise joins. It is suitable for underground use when wrapped with corrosion protective tape (P/N's 9321, 9322, or 9323).
Supporting a maximum pressure of 7 bar at 20°C, with its performance depending on the MDPE pipe's specifications. It also features a nitrile compound seal to ensure a tight, leak-free connection.
The pipe is inserted into the fitting to the predetermined length and the nut tightened, special tools are not required. Fittings for use with MDPE pipes are supplied complete with insert stiffeners.
The Primofit® Adaptor Gas 3/4" BSP x 25mm MDPE Galvanised provides secure and durable connections, a robust pressure rating, and flexible installation options, making it ideal for natural gas and LPG transitions.
https://www.bes.co.uk/primofit-adaptor-gas-3-4-bsp-x-25mm-mdpe-galvanised-10845/31911Primofit® Adaptor Gas 3/4" BSP x 25mm MDPE Galvanisedhttps://www.bes.co.uk/media/catalog/product/3/-/3-4in-x-25-mm-adaptor-bsp-parallel-female-x-mdpe-galvanized-primofit_min_10845_P_1.jpg40.3640.36GBPInStock/Pipe Tube & Fittings/Pipe Fittings/MDPE41611241424145
<p>The Primofit® Adaptor Gas 3/4" BSP x 25mm MDPE Galvanised is a reliable compression fitting designed to join yellow gas MDPE pipes or transition them to steel pipes, meeting BS EN 10255 and BS EN 10220 standards. This fitting is manufactured by a BS EN ISO 9001 registered company, ensuring high-quality construction. It is ideal for installations involving natural gas or LPG, with easy-to-follow instructions and no need for special tools.</p>
<p>Constructed from malleable iron with a galvanised finish, this adaptor offers enhanced corrosion resistance. The fitting supports an angular deflection of up to 6°, making it suitable for accommodating slight misalignments in connected pipes.</p>
<p>The connection includes a male BSP taper to ISO 7-1 and a female BSP parallel to ISO 7-1, allowing for secure and precise joins. It is suitable for underground use when wrapped with corrosion protective tape (P/N's <a href="https://www.bes.co.uk/prem50-corrosion-protection-tape-50-mm-x-10-m-9321/">9321</a>, <a href="https://www.bes.co.uk/prem75-corrosion-protection-tape-75-mm-x-10-m-9322/">9322</a>, or <a href="https://www.bes.co.uk/prem100-corrosion-protection-tape-100-mm-x-10-m-9323/">9323</a>).</p>
<p>Supporting a maximum pressure of 7 bar at 20°C, with its performance depending on the MDPE pipe's specifications. It also features a nitrile compound seal to ensure a tight, leak-free connection.</p>
<p>The pipe is inserted into the fitting to the predetermined length and the nut tightened, special tools are not required. Fittings for use with MDPE pipes are supplied complete with insert stiffeners.</p>
<p>The Primofit® Adaptor Gas 3/4" BSP x 25mm MDPE Galvanised provides secure and durable connections, a robust pressure rating, and flexible installation options, making it ideal for natural gas and LPG transitions.</p>
<p>Alternative <a href="#more_product_options">Options</a> available.</p>
<p><span style="font-weight: bold;">Benefits</span></p>
<ul style="list-style: circle outside; line-height: 110%;">
<li>Durable malleable iron with a galvanised finish for corrosion resistance</li>
<li>Supports pressure up to 7 bar at 20°C</li>
<li>Easy installation with compression fitting </li>
<li>Accommodates angular deflection up to 6°</li>
<li>Nitrile seal ensures a secure and leak-free connection</li>
<li>Suitable for both natural gas and LPG applications</li>
<li>Meets BS EN 10255, BS EN 10220 and BS EN ISO 9001 standards</li>
<li>-20° to 40°C temperature range</li></ul>
