Part Number: 16852

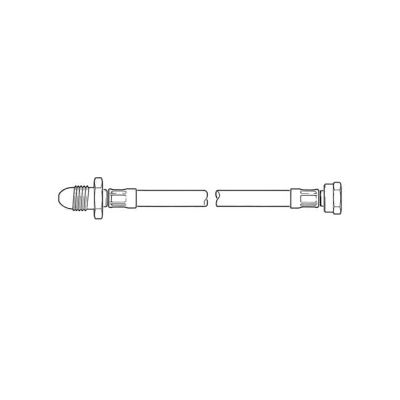

Propane Pigtail Hose Assembly 1.5m NR POL x W20
N/R POL + 5/8" LH nut x W20 nut and tail, unbraided.
High pressure black hose to (and marked) BS 3212:1991 Type 2. 6.3 mm i.d., 15.5 mm o.d., 20 bar working pressure, 69 bar burst pressure. A self adhesive advisory label is attached to every hose. Red labels for those fitted with full non-return/excess flow valve fittings and a yellow label for other assemblies. Some assemblies available with rodent proof galvanised multi-plait overbraid. S/T indicates straight through and N/R indicates a non-return/excess flow valve. For Propane only.
Product Specification
Application | Propane |
Braiding | Unbraided |
Standards | BS 3212:1991 Type 2 |
Burst Pressure | 69 bar |
Colour | Black |
Connection | N/R POL + 5/8" LH Nut x W20 Nut + Tail |
Gas Type | Propane |
Inside Diameter | 6.3 mm |
Length | 1500 mm |
N/R or S/T | N/R |
Operating Pressure | Working pressure: 20 bar |
Outside Diameter | 15.5 mm |
Suitable Application | Propane |
Type | Pigtail Assembly |
