Part Number: 12622

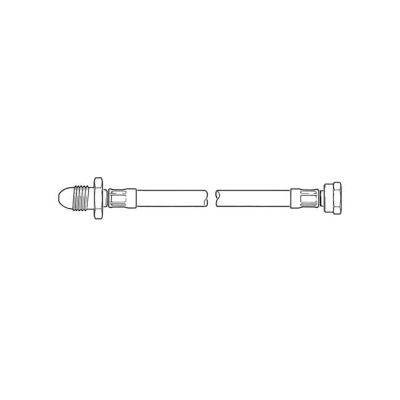

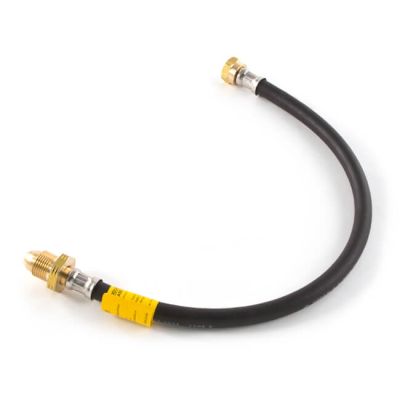

Propane Pigtail Hose Assembly 20" ST POL x W20
Straight through POL+ 5/8" LH nut x W20 nut and tail, unbraided.
High pressure black hose to (and marked) BS 3212:1991 Type 2. A yellow self adhesive advisory label is attached. Some assemblies available with rodent proof galvanised multi-plait overbraid. S/T indicates straight through. For Propane only.
Product Specification
Application | Propane |
Braiding | Unbraided |
Standards | BS 3212:1991 Type 2 |
Burst Pressure | 69 Bar |
Colour | Black |
Connection | S/T POL + 5/8" LH Nut X W20 Nut + Tail |
Gas Type | Propane |
Inside Diameter | 6.3 Mm |
Length | 20" |
N/R Or S/T | S/T |
Operating Pressure | Working Pressure: 20 Bar |
Outside Diameter | 15.5 Mm |
Suitable Application | Propane |
Type | Pigtail Assembly |
