Part Number: 12879

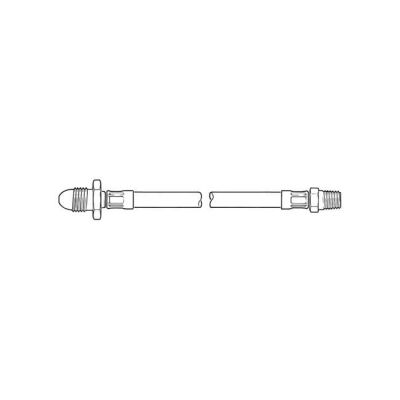

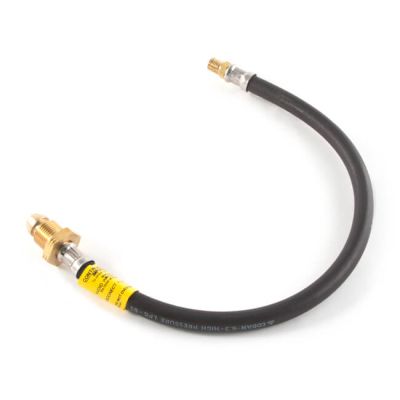

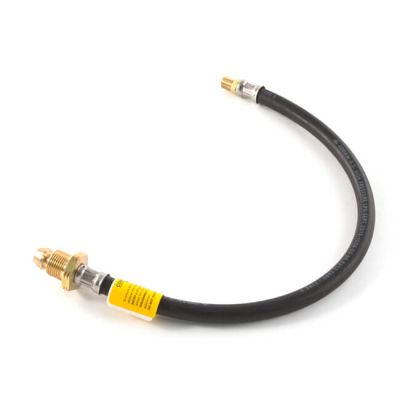

Propane Pigtail Hose Assembly 6" ST POL x BSP TM
S/T POL + 5/8" LH nut x 3/8" BSP TM, unbraided.
High pressure black hose to (and marked) BS 3212:1991 Type 2. 6.3 mm i.d., 15.5 mm o.d., 20 bar working pressure, 69 bar burst pressure. A self adhesive advisory label is attached to every hose. White labels for those fitted with full non-return/excess flow valve fittings and a yellow label for other assemblies. Some assemblies available with rodent proof galvanised multi-plait overbraid. S/T indicates straight through and N/R indicates a non-return/excess flow valve. For Propane only.
See More >
Product Specification
| Application | Propane |
| Braiding | Unbraided |
| Standards | BS 3212:1991 Type 2 |
| Burst Pressure | 69 bar |
| Colour | Black |
| Connection | S/T POL x 5/8" LH Nut x 3/8" BSP TM |
| Gas Type | Propane |
| Inside Diameter | 6.3 mm |
| Length | 6" |
| N/R or S/T | S/T |
| Operating Pressure | Working pressure: 20 bar |
| Outside Diameter | 15.5 mm |
| Suitable Application | Propane |
| Type | Pigtail Assembly |
