Part Number: 20885
Manufacturer's Part Number: 5A2033

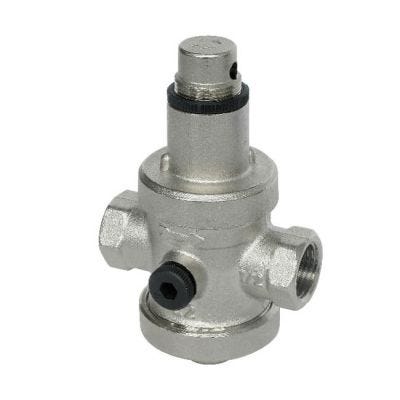

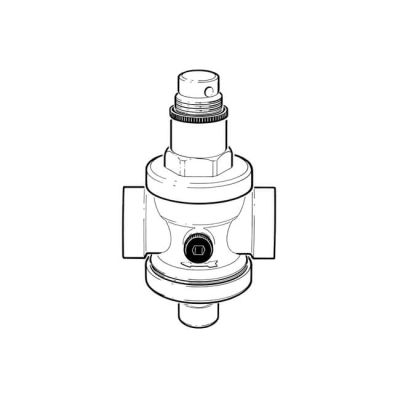

PRV4 PT Pressure Reducing Valve - 1"
1" BSP F connections to ISO 228-1.
The PRV4 PT water pressure reducing valve is suitable for domestic and industrial installations.
The valve features a plated brass body with 1/4" outlet pressure gauge connection on both sides, brass diaphragm, stainless steel seat, preset at 3 bar outlet pressure and the ability to work in any orientation (horizontal, vertical, up-side-down).
The PRV4 PT pressure reducing valve must be set when the system is closed.
Max. inlet pressure : 25 bar.
Max. operating temperature : 80°C.
Adjustable outlet pressure : 0.5 - 6 bar.
Reduction ratio : 5:1.
Dimensions : 91 mm face to face, H 152 x W 75 mm.
|Inlet Pressure||Max: 25 Bar|
|Outlet Pressure||0.5 - 6 Bar|
|Sub Brand||Prv 4|
|Type||Pressure Reducing Valve|
