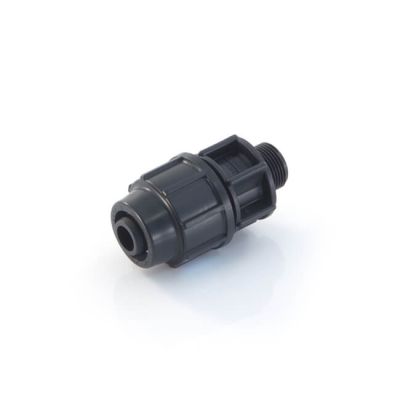

Puriton® Adaptor - 32mm x 1" BSP PM

Name: Puriton® Adaptor - 32mm x 1" BSP PM
Brand: Puriton®
SKU: 23610
Price: 9.63 GBP
Availability: InStock

Barrier MDPE Puriton® adaptor manufactured from polypropylene and supplied with integral inserts, grip rings and o-ring seals.

BSP Explained

BES Ltd., British Standard Pipe Thread Identification Chart.

BSP – This is an abbreviation used for British Standard Pipe threads, and the size refers to the nominal bore (or internal diameter) of the steel pipe the thread was originally designed for, not the diameter of the actual thread. Please measure your maximum (or major) thread diameter in millimetres and use the chart below to identify the BSP size you need.

Further advice can be obtained from our Technical Team if you are still unsure.

BSP Size	Actual Diameter of Thread
1/8"	9.728 mm
1/4"	13.157 mm
3/8"	16.662 mm
1/2"	20.995 mm
3/4"	26.441 mm
1"	33.249 mm
1 1/4"	41.910 mm
1 1/2"	47.803 mm
2"	59.614 mm
2 1/2"	75.184 mm
3"	87.884 mm

The information above is provided for guidance only. The data shown represents extracts interpreted by us of the British Standards. If more clarification and accuracy is required, you should refer to the relevant British Standard.

Product Specification

Approved by	WRAS Approved
Brand	Puriton®
Standards	BS 8588:2017
Colour	Black
Connection	Compression x BSP PM
Fitting Type	Adaptor
Material	Polypropylene
Max. Operating Pressure	12.5 bar
Size	32 mm x 1"
Suitable Application	The barrier pipe system of choice for your new or replacement drinking water supply, Puriton® is a cutting edge solution for the safe distribution of drinking water through contaminated land.
Type	Adaptor
