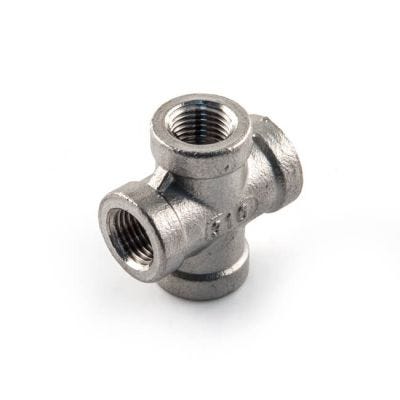

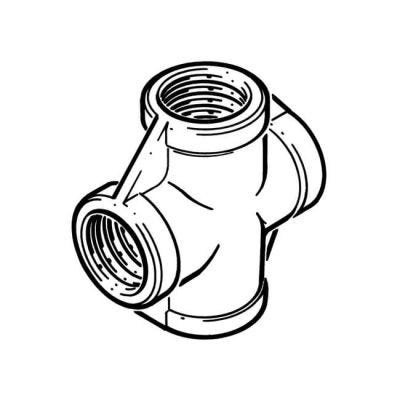

Screwed Stainless Steel Equal Cross - 3/4" BSP

Name: Screwed Stainless Steel Equal Cross - 3/4" BSP
Brand: Unbranded
SKU: 14296
Price: 6.93 GBP
Availability: InStock

316 stainless steel fittings manufactured to BS 1740. Stainless steel is to BS 316 S11 (EN 1088-3 1-440). 150 p.s.i. (10 bar) maximum working pressure. BSP threads to BS 21.
Suitable for Natural gas, LPG, hot and cold water, and other applications.

BSP Explained

BES Ltd., British Standard Pipe Thread Identification Chart.

BSP – This is an abbreviation used for British Standard Pipe threads, and the size refers to the nominal bore (or internal diameter) of the steel pipe the thread was originally designed for, not the diameter of the actual thread. Please measure your maximum (or major) thread diameter in millimetres and use the chart below to identify the BSP size you need.

Further advice can be obtained from our Technical Team if you are still unsure.

BSP Size	Actual Diameter of Thread
1/8"	9.728 mm
1/4"	13.157 mm
3/8"	16.662 mm
1/2"	20.995 mm
3/4"	26.441 mm
1"	33.249 mm
1 1/4"	41.910 mm
1 1/2"	47.803 mm
2"	59.614 mm
2 1/2"	75.184 mm
3"	87.884 mm

The information above is provided for guidance only. The data shown represents extracts interpreted by us of the British Standards. If more clarification and accuracy is required, you should refer to the relevant British Standard.

Product Specification

Angle	90°
Connection	BSP F
Equal/Reducing	Equal
Fitting Type	Cross
Material	316 Stainless Steel
Max. Operating Pressure	Max. Working Pressure: 150 p.s.i. (10 bar)
Size	3/4"
Suitable Application	Natural Gas, LPG, Hot & Cold Water
Type	Cross
