Part Number: 10198

Manufacturer's Part Number: 775063572

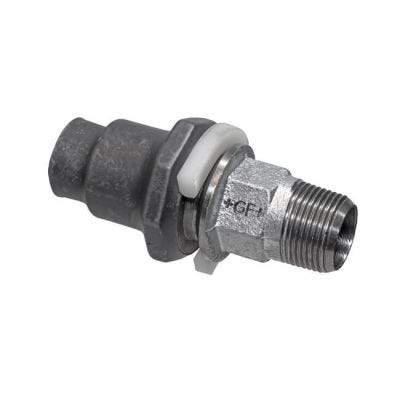

Semi-concealed Meter Box Adaptor Draw-lock 20mm x 3/4"

BSP TM.

For semi-concealed meter installations. Light, compact design. Hot dip galvanised. Shrink wrapped for corrosion protection.

For Natural Gas and LPG.

Product Specification

Adaptor Type Adaptor
Brand Draw-lock
Standards BS 729, DIN 2950
Connection 20 Mm X 3/4" BSP TM
Finish Galvanised
Material Malleable Cast Iron
Operating Pressure 7bar
Operating Temperature -20° C To 40° C
Size 20 Mm X 3/4"
Sub Brand Drawlock
Suitable Application Mechanical Sytem Used For Transition Between Polyethylene Pipe And Male BSP Threads
Type Meter Box Adaptor
Type Of Connector Drawlock X BSP M
