Part Number: 20918

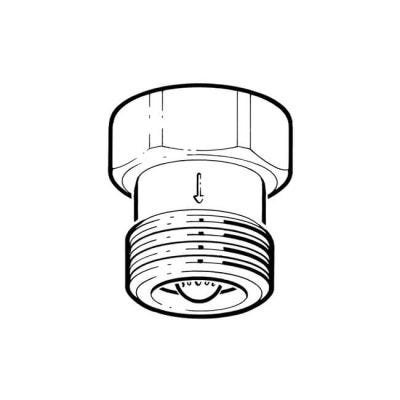

Shower Flow Limiter - 1/2" F x 1/2" M - 8 l/m
The flow limiter is installed between a shower outlet having a male threaded connection and the handset flexible hose.
ABS plated body with BSP female x BSP male parallel threads to BS EN ISO 228:2003.
Max. inlet pressure : 10 bar.
Max. inlet temperature : 80°C.
Supplied with inlet washer and mesh filter.
Body length dimensions :
P/Ns 20917 to 20919 : 27.5 mm
P/Ns 20920 to 20922 : 28.5 mm
Flow cartridge colour code :

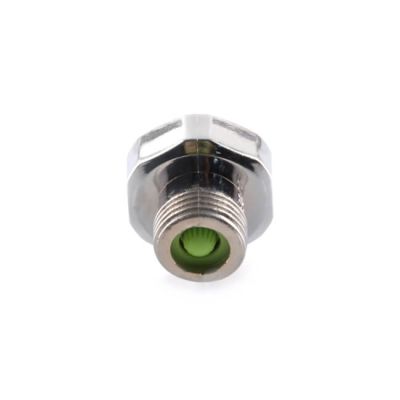

6 l/m - Green
8 l/m - White

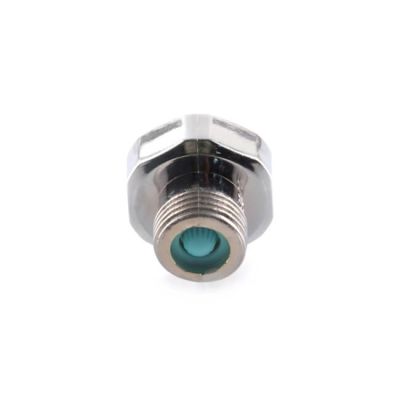

10 l/m - Blue
ABS plated body with BSP female x BSP male parallel threads to BS EN ISO 228:2003.
Max. inlet pressure : 10 bar.
Max. inlet temperature : 80°C.
Supplied with inlet washer and mesh filter.
Body length dimensions :
P/Ns 20917 to 20919 : 27.5 mm
P/Ns 20920 to 20922 : 28.5 mm
Flow cartridge colour code :
6 l/m - Green
8 l/m - White
10 l/m - Blue
See More >
Specification
| Standards | BS EN ISO 228:2003 |
| Colour | White |
| Connection | BSP F x BSP M Parallel |
| Dimensions | 27.5 mm |
| Flow Rate | 8 l/min |
| Inlet Pressure | Max: 10 bar |
| Inlet Temperature | Max: 80°C |
| Material | ABS |
| Size | 1/2" |
| Type | Shower Limiter |
