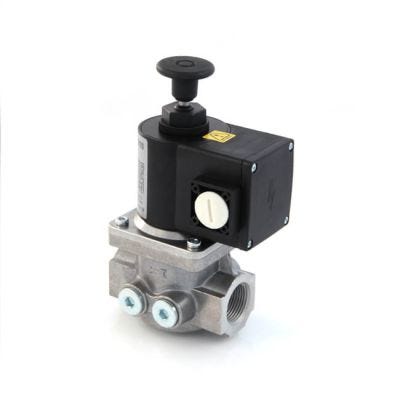

Solenoid Gas Safety Shut Off Valve - 1.1/4"

Name: Solenoid Gas Safety Shut Off Valve - 1.1/4"
Brand: Unbranded
SKU: 8930
Price: 111.95 GBP
Availability: InStock

BSP F x F, normally closed with manual reset.

Closed by power interruption in less than one second. They can be electrically connected to an alarm system and/or to a knock-off switch. Electrical power alone will not re-open them (they have to be manually re-opened in the presence of current).

Product Specification

Ambient Temperature	15 to 60°C
Connection	BSP F x F
Consumption	5 VA

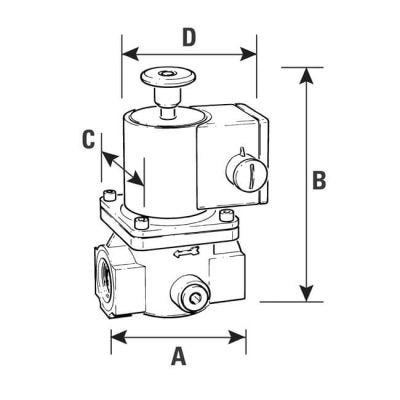

Dimensions	A: 150 mm, B: 221 mm, C: 110 mm, D: 85 mm
Flow Rate	Flow rate diagram available on request.
For Use With	Natural Gas, LPG and Air.
Inlet Pressure	500 mbar
Nominal Bore	32 mm
Power	230 V AC
Pressure Rating	500 mbar
Reset Type	Manual
Size	1.1/4"
Suitable Application	Gas Safety Shut Off Valve, can be electrically connected to an alarm system and/or a knock-off switch.
Type	Solenoid Valve

Product Attachments

Technical Specification Sheet (278.84 kB)

Technical Data Sheet (365.08 kB)
