Part Number: 20046

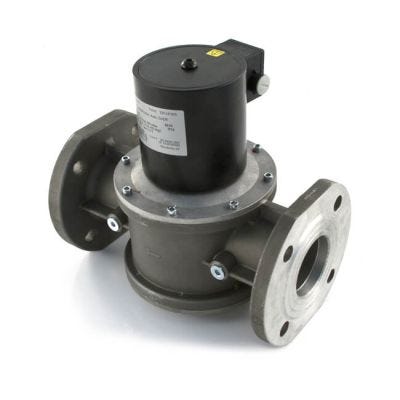

Solenoid Gas Safety Shut Off Valve - 125mm

PN16 flanged (5"), normally closed without manual reset.

Closed by power interruption in less than one second. Automatic reset so that electrical power alone will re-open them in less than one second. With tappings suitable for CPI switch, pressure gauge, or connection to proving and interlock systems. They can be electrically connected to an alarm system and/or to a knock-off switch.

WEIGHT & SIZE RESTRICTIONS

Some delivery options may not be available

Product Specification

Ambient Temperature 15 To 60°C
Closing Time 1 Second
Connection PN16
Consumption 290 VA

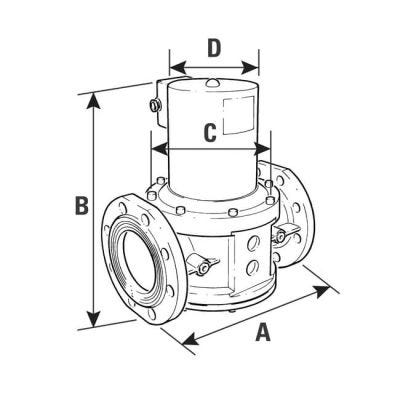

Dimensions A: 400, B: 592, C: 300, D: 250 Mm
Flanges PN16
Flow Rate Flow Rate Diagram Available On Request.
For Use With Natural Gas, LPG And Air
Inlet Pressure 200 Mbar
IP Rating IP 54
Nominal Bore 125 Mm
Power 230 V AC
Pressure Rating 200 Mbar
Reset Type Automatic
Size 125 Mm
Suitable Application Gas Safety Shut Off Valve, Can Be Electrically Connected To An Alarm System And/or A Knock-off Switch.
Type Solenoid Valve
