Solenoid Gas Safety Shut Off Valve - 2"

£152.71 £127.26
£152.71 £127.26
More product options available

Part Number: 8966

Solenoid Gas Safety Shut Off Valve - 2"

BSP F x F, normally closed without manual reset.

Closed by power interruption in less than one second. Automatic reset so that that electrical power alone will re-open them. They can be electrically connected to an alarm system and/or to a knock-off switch.

Product Specification

Ambient Temperature 15 To 60°C
Closing Time 1 Second
Connection BSP F X F
Consumption 50 VA

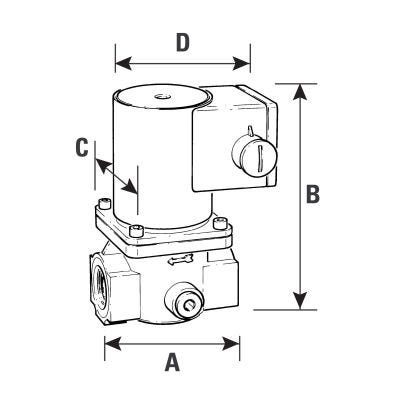

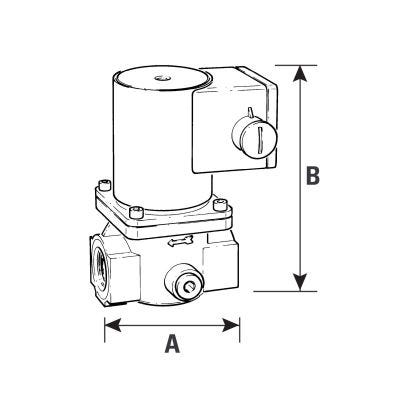

Dimensions A: 170, B: 220, C: 135, D: 123 Mm
Flow Rate Flow Rate Diagram Available On Request.
For Use With Natural Gas, LPG And Air
Inlet Pressure 360 Mbar
IP Rating IP 54
Nominal Bore 50 Mm
Power 230 V AC
Pressure Rating 360 Mbar
Reset Type Automatic
Size 2"
Suitable Application Gas Safety Shut Off Valve, Can Be Electrically Connected To An Alarm System And/or A Knock-off Switch.
Type Solenoid Valve
Voltage 230V AC (+10% -15%) 50 To 60 Hz
Weight 6.1 Kg
