Part Number: 8967
Solenoid Gas Safety Shut Off Valve - 65mm
PN16 flanged (2.1/2"), normally closed without manual reset.
Closed by power interruption in less than one second. Automatic reset so that electrical power alone will re-open them in less than one second. With tappings suitable for CPI switch, pressure gauge, or connection to proving and interlock systems. They can be electrically connected to an alarm system and/or to a knock-off switch.Flange Size: PN16.WEIGHT & SIZE RESTRICTIONS
Some delivery options may not be available
Product Specification
| Ambient Temperature | 15 to 60°C |
| Closing Time | 1 second |
| Connection | PN16 |
| Consumption | 68 VA |

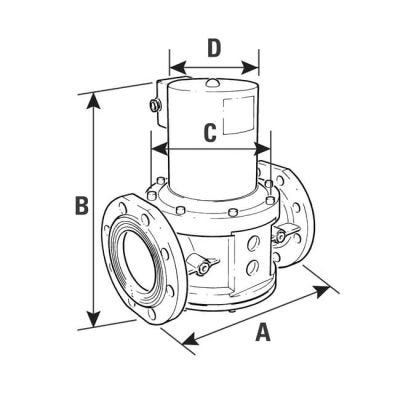

| Dimensions | A: 310, B: 343, C: 200, D: 148 mm |
| Flow Rate | Flow rate diagram available on request. |
| For Use With | Natural Gas, LPG and Air |
| Inlet Pressure | 360 mbar |
| IP Rating | IP 54 |
| Nominal Bore | 65 mm |
| Power | 230 V AC |
| Pressure Rating | 360 mbar |
| Reset Type | Automatic |
| Size | 65 mm |
| Suitable Application | Gas Safety Shut Off Valve, can be electrically connected to an alarm system and/or a knock-off switch. |
| Type | Solenoid Valve |
| Weight | 15 kg |
