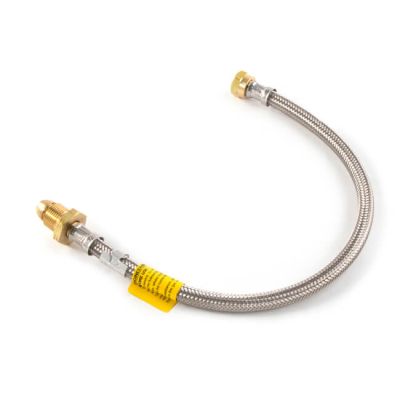

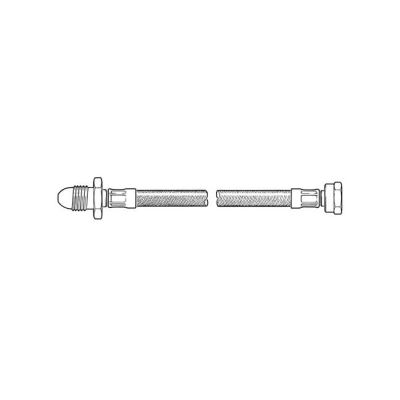

Part Number: 13496
Stainless Steel Overbraid Pigtail 20" ST POL x W20
20" S/T POL + 5/8" LH nut x W20 nut and tail.
High pressure black hose to (and marked) BS 3212:1991 Type 2. 6.3 mm i.d., 15.5 mm o.d., 20 bar working pressure, 69 bar burst pressure. Stainless steel ferrules and stainless steel overbraid suitable for seagoing craft. A self-adhesive advisory label is attached to every hose. White labels for those fitted with full non- return/excess flow valve fittings and a yellow label for other assemblies. S/T indicates straight through and N/R indicates a non-return/excess flow valve. for Propane only.
Product Specification
Application | Propane |
Braiding | Braided |
Standards | BS 3212:1991 Type 2 |
Burst Pressure | 69 bar |
Connection | S/T POL + 5/8" LH Nut x W20 Nut + Tail |
Gas Type | Propane |
Inside Diameter | 6.3 mm |
Length | 20" |
Material | Stainless Steel Overbraid |
N/R or S/T | S/T |
Operating Pressure | Working pressure: 20 bar |
Outside Diameter | 15.5 mm |
Suitable Application | Seagoing craft |
Type | Pigtail Assembly |
