Part Number: 13497

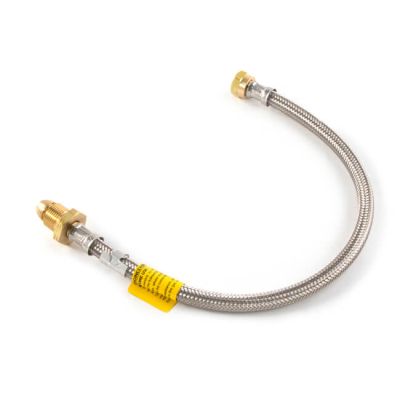

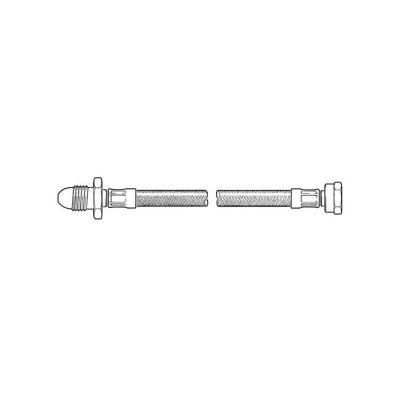

Stainless Steel Overbraid Pigtail 35" ST POL x W20
35" S/T POL + 5/8" LH nut x W20 nut and tail.
High pressure black hose to (and marked) BS 3212:1991 Type 2. 6.3 mm i.d., 15.5 mm o.d., 20 bar working pressure, 69 bar burst pressure. Stainless steel ferrules and stainless steel overbraid suitable for seagoing craft. A self-adhesive advisory label is attached to every hose. White labels for those fitted with full non- return/excess flow valve fittings and a yellow label for other assemblies. S/T indicates straight through and N/R indicates a non-return/excess flow valve. for Propane only.
|Standards||BS 3212:1991 Type 2|
|Burst Pressure||69 bar|
|Connection||S/T POL + 5/8" LH Nut x W20 Nut + Tail|
|Inside Diameter||6.3 mm|
|Material||Stainless Steel Overbraid|
|N/R or S/T||S/T|
|Operating Pressure||Working pressure: 20 bar|
|Outside Diameter||15.5 mm|
|Suitable Application||Seagoing craft|
