Steel Convoluted Hose 900 mm Unbraided

£38.29 £31.91
£38.29 £31.91
More product options available

Part Number: 6074

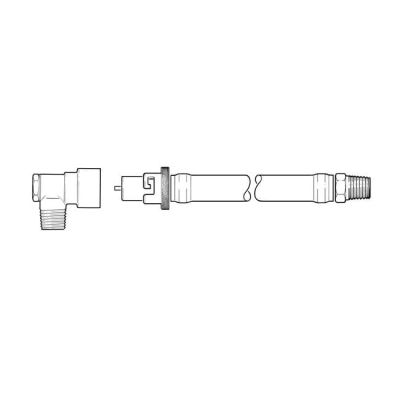

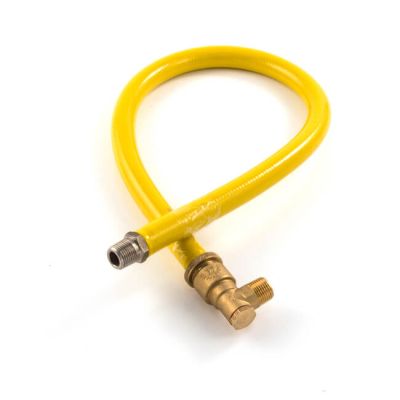

Steel Convoluted Hose 900 mm Unbraided

Flexible metallic hose assembly to BS EN ISO 10380. The flexible hose is stainless steel, the end fittings are stainless steel or (carbon) steel. This hose is suitable for Natural gas and LPG. Assembly temperature range : -20 to 70°C. The polyolefin cover is white or yellow according to stock.
The bayonet hose pressure limitation is fixed by the bayonet plug and socket which is identical to that used on a domestic cooker installation and is tested to 50 mbar at a maximum temperature of 95°C.

Product Specification

Bore 1/2"
Braiding Unbraided
Standards BS EN ISO 10380
Colour White/Yellow
Connection BSP TM x Bayonet
Finish Polyolefin
Fittings Right angled socket
Length 900 mm
Material Stainless Steel
Operating Pressure Max: 50 mbar
Size 1/2"
Suitable Application Suitable for Natural Gas and LPG.
Temperature -20°C to 70°C
Type Gas Hose
