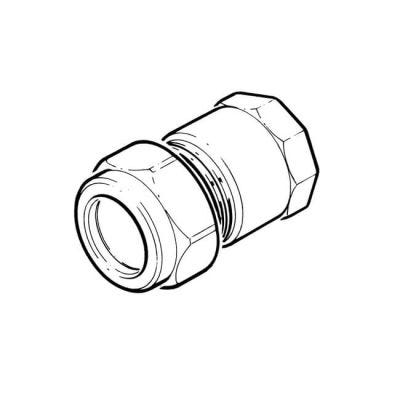

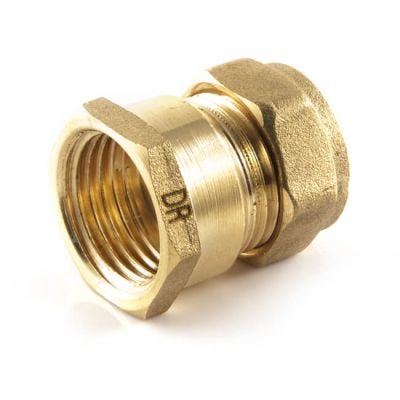

Straight Adaptor DZR Compression 54mm x 2" BSP F

Name: Straight Adaptor DZR Compression 54mm x 2" BSP F
Brand: BESt range
SKU: 7892
Price: 21.41 GBP
Availability: InStock

DZR Compression fittings Made by BS EN ISO 9001 registered companies, manufactured to BS EN 1254-2. 54 mm x 2" compression x BSP parallel female - straight adaptors - DZR

BSP Explained

BES Ltd., British Standard Pipe Thread Identification Chart.

BSP – This is an abbreviation used for British Standard Pipe threads, and the size refers to the nominal bore (or internal diameter) of the steel pipe the thread was originally designed for, not the diameter of the actual thread. Please measure your maximum (or major) thread diameter in millimetres and use the chart below to identify the BSP size you need.

Further advice can be obtained from our Technical Team if you are still unsure.

BSP Size	Actual Diameter of Thread
1/8"	9.728 mm
1/4"	13.157 mm
3/8"	16.662 mm
1/2"	20.995 mm
3/4"	26.441 mm
1"	33.249 mm
1 1/4"	41.910 mm
1 1/2"	47.803 mm
2"	59.614 mm
2 1/2"	75.184 mm
3"	87.884 mm

The information above is provided for guidance only. The data shown represents extracts interpreted by us of the British Standards. If more clarification and accuracy is required, you should refer to the relevant British Standard.

Product Specification

Standards	BS EN ISO 9001, BS EN 1254-2
Connection	Compression x BSP PF
Finish	Brass
Fitting Type	Straight Adaptor
Material	DZR
Size	54 mm x 2"
Type	Straight Adaptor
