Part Number: 22008

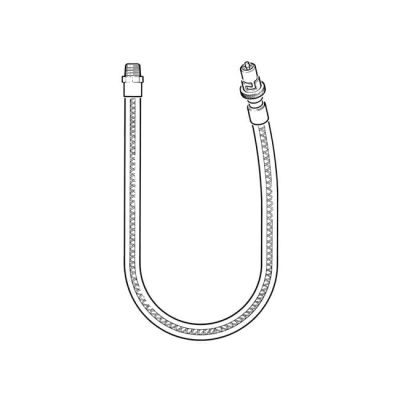

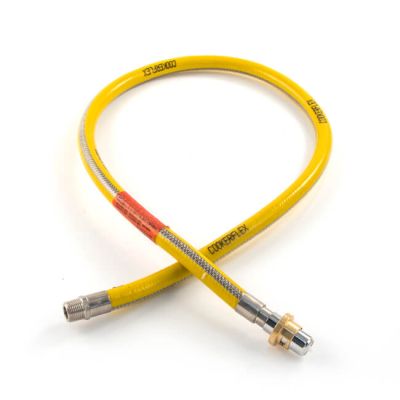

Straight Bayonet Cooker Hose EN14800 - 1/2" x 1000mm
Stainless steel, straight bayonet x BSP T M.
Suitable for use with all 3 gas family types, manufactured from stainless 300 series corrugated braided hose to EN ISO 10380:2012 with a PVC cover. Hoses are manufactured and approved to EN 14800:2007. Compatible with BS 669-1 design and EN 15069 approved sockets. Patented fitting design to shut-off the gas in case of localised fire and extreme temperature.
Max. working pressure: 0.5 bar.
Min. bend radius: 125 mm.
For ambient temperatures up to 60ﾰC.
|Ambient Temperature||70°C, Touch: 95°C|
|Standards||BS EN 14800:2007|
|Connection||BSP TM X Straight Bayonet|
|Fittings||Bayonet X TM Universal|
|Max. Operating Pressure||Working: 0.5 Bar|
|Suitable Application||Suitable For Use With All 3 Gas Family Types, Manufactured From Stainless 300 Series Corrugated Braided Hose To EN ISO 10380:2012 With A PVC Cover.|
