Part Number: 15785
TEL99 Ventilator - Brown/White

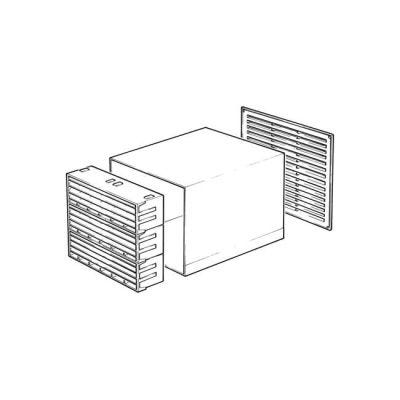

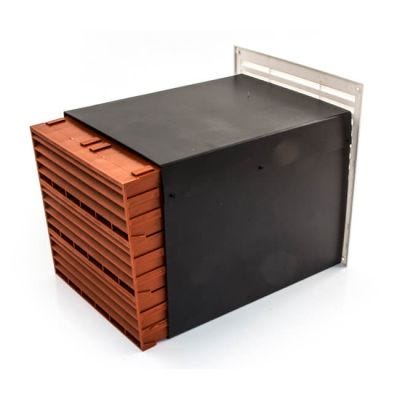

9" x 9" through wall vent sets for new applications. TEL 99 includes airbrick with integral water barrier and has keyed surface for painting - if required.
Free area : 207 cm² (32 in²)
Through wall length: 300 mm
Size of internal vent: 255 mm x 250 mm
Air brick colour: Brown/internal vent white.
For appliances up to 48 kW Net - (53 kW Gross)
Free area : 207 cm² (32 in²)
Through wall length: 300 mm
Size of internal vent: 255 mm x 250 mm
Air brick colour: Brown/internal vent white.
For appliances up to 48 kW Net - (53 kW Gross)
Product Specification
| Standards | BS 5440-2:2009 |
| Colour | Brown |
| Dimensions | External Grille 209 mm x 218 mm , Internal Grille 255 mm x 250 mm |
| Free Area | 207 cm² |
| Free Area Size | 209 cm² |
| Internal Vent Size | 255 mm x 250 mm |
| Length | 321 mm |
| Size | 9" x 9" |
| Tube Diameter | 218 mm x 212 mm (9"x9") |
| Type | Three Brick Ventilator |
