Part Number: 26938
Manufacturer's Part Number: 0564 5652 02

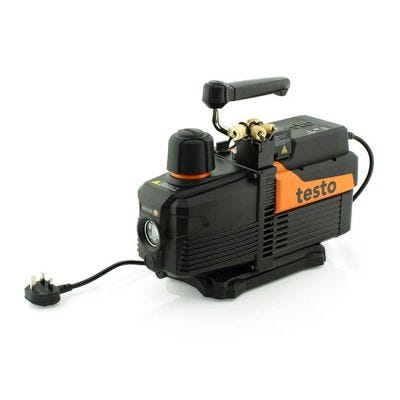

The Testo 565i two stage rotary vane vacuum pump designed for use with A2L, A2 and A3 refrigerants. Features easy oil change and inspection glass for quick assessment
of the oil level, fully automated evacuation process with integrated holding test, non-return valve to prevent vacuum loss in the event of a power interruption and automatic connection to testo refrigeration measuring instruments and the Testo Smart App via Bluetooth®.
Supplied with testo 565i smart vacuum pump, oil bottle and calibration protocol.
Free air displacement: 198 l/min. (7 CFM).
Supplied with testo 565i smart vacuum pump, oil bottle and calibration protocol.
Free air displacement: 198 l/min. (7 CFM).
See More >
Product Specification
Brand | Testo |
Standards | Oil compatibility: ISO VG 46 |
Dimensions | H 314 x W 375 x D 150 mm |
Motor Power | 800 W |
Oil Capacity | 610 ml |
Suitable Application | For use with A2L, A2 and A3 refrigerants. |
Type | Vacuum Pump |
Voltage | 230 V, 50 Hz |
Weight | 12 kg |
