Part Number: 24061
Manufacturer's Part Number: FGP-SS4-15-30CC

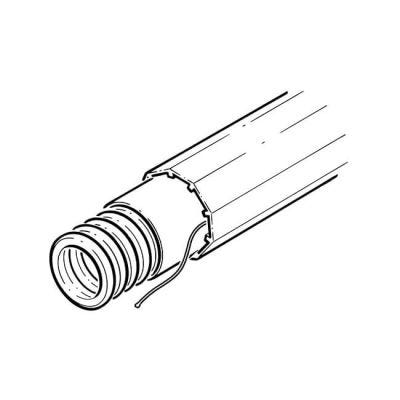

TracPipeCC (Complete Containment) includes an original TracPipe with an additional robust outer cover with internal ridges that allow any escaping gas to move freely to ventilated areas at the ends of the pipe.

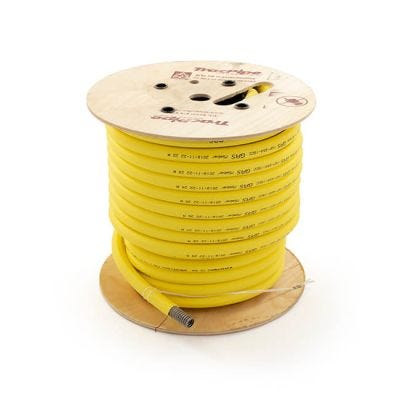

TracPipeCC 15 mm is a stainless steel, semi-rigid (bendable) corrugated gas pipe with a yellow polyethylene cover that is fire and smoke retardant, suitable for natural gas and LPG installations generally between the meter and appliance.
TracPipeCC sizes, 22 mm, 28 mm, 32 mm, 40 mm and 50 mm are available, and in lengths of 30 m and 50 m.
Benefits
- Lightweight, easy to handle and transport
- Designed for routing within unventilated voids as well as through specified hazardous areas
- Run continuous lengths of 15 mm TracPipeCC
- Can be run horizontally and vertically
- No soldering or welding
- Pulling string installed between primary and secondary outer covers
The pipe may be bent by hand, but must NOT be used where repeated bending occurs after installation.
TracPipe AutoFlare fittings are used to connect TracPipeCC. No welding, soldering or threading is required.
Shop more from TracPipe®
WEIGHT & SIZE RESTRICTIONS
Some delivery options may not be available
Product Specification
Brand | TracPipe® |
Standards | BS EN 15266 & BS 7838 |
Inside Diameter | 15.2 mm (Nominal) |
Outside Diameter | 25 mm (Cover) |
Length | 30 m |
Material | Stainless Steel |
Max. Operating Pressure | 75 mbar |
Min. Bend Radius | 76 mm |
Size | 15 mm |
Size code for pipe | DN15 |
Suitable Application | To run internal Natural gas and LPG supplies from the meter to the appliances through unventilated voids. Can be buried underground or directly in screed without the need for additional corrosion protection. |
Type | Flexible Pipe |
