Part Number: 23401
Manufacturer's Part Number: AUI180

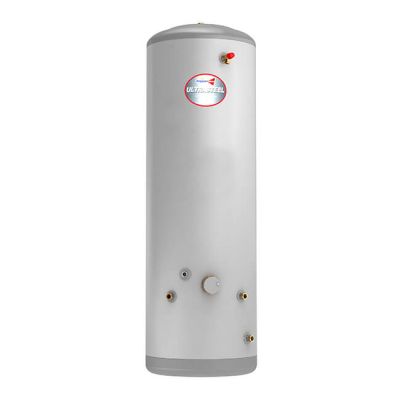

Ultrasteel Unvented Indirect Cylinder - 180 Litres
Duplex stainless steel shell with stainless steel thermostat pockets, insulated with polyurethane foam insulation and enclosed in a corrosion resistant outer case.
All cylinders are 550 mm dia., have 22 mm compression connections and are supplied with an installation kit. Immersion heater has an 1¾" BSP connection. ErP Rating D based on thermostat set at 60°C.
PLEASE NOTE: THESE ITEMS WILL BE DELIVERED DIRECT FROM OUR SUPPLIER, UK DELIVERY WILL BE UP TO 10 DAYS. ORDER CANCELLATION MAY INCUR CHARGES.
Weight empty: 45kg.
WEIGHT & SIZE RESTRICTIONS
Some delivery options may not be available
Product Specification
Brand | King Span |
Approved by | WRAS to Building Regulations G3 & L & BEAB |
Capacity | 180 litres |
Connection | 22 mm Compression |
Diameter | 550 mm |
Height | 1302 mm |
Immersion Heater | One |
Indirect | Indirect unvented cylinder |
Insulation | Polyurethane foam insulation |
Kit Contents | Installation kit : cold water inlet control set, temperature and pressure relief valve (factory fitted), two port zone valve, dual thermostat, 15 x 22 mm tundish, 1 x immersion heater and expansion vessel with 22 mm compression conection and wall mount. |
Material | Stainless Steel |
Type | Unvented Indirect Cylinder |
