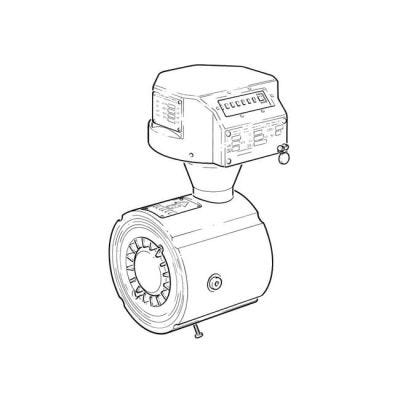

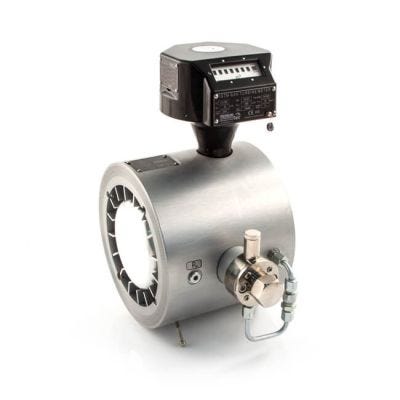

Vemm Tec IGTM G400/G650 Turbine Gas Meter 6" DN150

£1,737.68 £1,448.07
£1,737.68 £1,448.07
More product options available

Part Number: 21930

Vemm Tec IGTM G400/G650 Turbine Gas Meter 6" DN150

The Vemm Tec IGTM G400/G650 Wafter Type PN10/16 Turbine Gas Meter in 6" DN150 size is a robust industrial gas meter engineered for precise measurement and reliable performance in demanding applications. Adhering to EN 97/23/EC and PED standards ensuring compliance with rigorous quality and safety requirements.

With a flow rate range of 32 to 1000 m³/h, it delivers precise measurement capabilities across a wide spectrum of gas flow rates. Its wafer type design with a nominal bore of 6" DN150 enables seamless integration into gas systems.

The IGTM G400/G650 maintains accuracy and reliability throughout and can withstand upstream flow disturbances. The low frequency pulse output facilitates convenient data transmission, enabling seamless integration with electronic volume converters (EVCs) or building management systems (BMS) for efficient monitoring and control. With a 8-digit mechanical counter to provide clear and accurate readings of gas consumption.

In terms of accuracy, the meter demonstrates ±3% accuracy for flow rates ranging from Qmin to 0.2 Qmax, and ±1.5% accuracy for flow rates between 0.2 Qmax ≤ Q ≤ Qmax, ensuring reliable measurement under varying flow conditions. p>

Featuring an anodised aluminium body to combine lightweight construction with exceptional durability, offering longevity and resistance to corrosion while its IP65 protection rating ensures resilience against dust and water ingress.

Tailored for use with non-aggressive gases and Zone 1 applications, this turbine gas meter is versatile and adaptable to a wide range of industrial environments. Its robust construction, precise measurement capabilities, and compatibility makes it an ideal choice for commercial and industrial gas metering applications.

PLEASE NOTE: Installation of a top hat filter is recommended to enhance longevity and protect the components

Compatible Housing Boxes, Fittings & Seals and Fixings available.

Benefits

  • Designed for use with non-aggressive gases and Zone 1 applications
  • 6” (DN150) connection size
  • Wafer type PN10/16 design
  • Flow rate of 32 to 1000 m³/hr
  • High level of accuracy
  • Pulse output of 1 m3/pulse
  • Mechanical display
  • IP65 protection rating with aluminium body
See More ⯈
WEIGHT & SIZE RESTRICTIONS

Some delivery options may not be available

Product Specification

Brand Vemm Tec
Standards EN 97/23/EC & PED
Accuracy ± 3% for Qmin ≤ Q <0.2 Qmax.± 1.5% for 0.2 Qmax ≤ Q ≤Qmax
Capacity 1000 m³/h
Connection 6"
Display Mechanical
Flow Rate 32 to 1000 m³/h
Material Aluminium
Meter Connection Size 6" DN150
Meter Type Turbine
Nominal Bore 6" DN150
Protection Rating IP65
Pulse Rate 1 m³/pulse
Suitable Application Industrial gas turbine meter for non-aggressive gases that is insensitive to upstraem flow disturbances
Test Point No
Type Commercial Meter
