Part Number: 22295
VHU80 Ultrasonic Heat Meter - DN80 3"

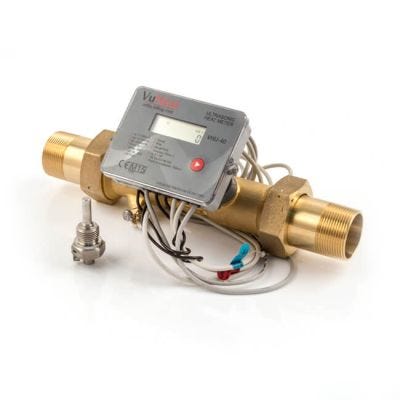

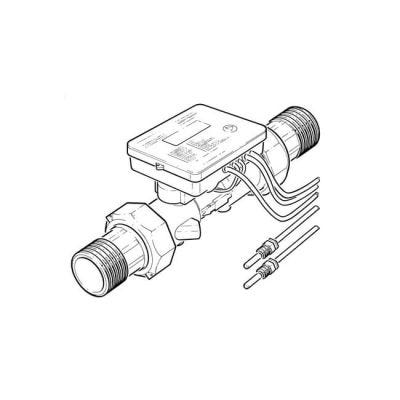

The VHU Ultrasonic heat meter has a dismountable LCD unit, M-Bus communications interface, sensor body with PN16 flanged connections, M-bus cable and two matched temperature sensors, for water-based systems with temperatures from 5 to 90°C.
Low energy consumption with up to 10 years battery life.
See More >
Product Specification
Brand | VHU |
Standards | BS EN 1434-2/+A1 |
Application | Heat Meter |
Connection | PN16 |
Flow Rate | 80 m³/h |
Material | Plastic |
Max. Operating Pressure | Allowable: 16 bar |
Meter Dimensions | 220 mm x 200 mm x 194 mm |
Nominal M3/H | 0.4 |
Power Supply | Battery |
Size | DN80, 3" |
Temperature Range | 5°C to 90°C |
Type | Heat Meter |
Weight | 11.7 kg |
