Xpress Press-fit Water Elbow - 54mm

£42.83 £35.69
£42.83 £35.69
More product options available

Part Number: 22635

Manufacturer's Part Number: 38306

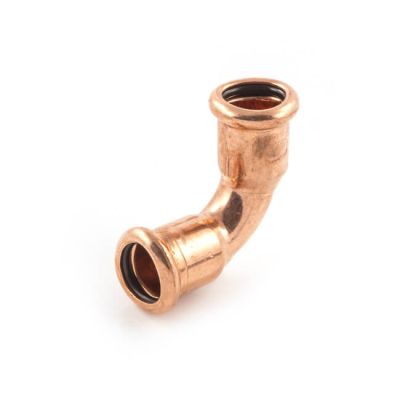

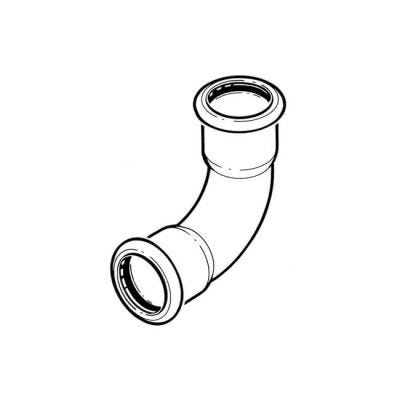

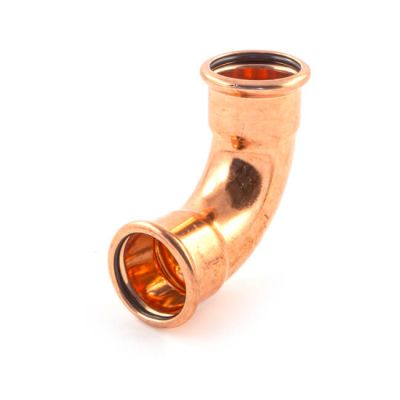

Xpress Press-fit Water Elbow - 54mm

Press-fit 54 mm Xpress Water Elbow - XPress Copper fittings are manufactured from copper or copper alloy and are designed for use on hot and cold water services, vented and unvented closed circuit heating and chilled water applications. Press Fitting ends have a Leak Before Press (LBP) feature to indicate if joint has not been pressed.
WRAS and KIWA approved. BSI Kitemark (BS 8537:2010). Complies with DVGW Arbeitsblatt W534. Manufactured by a BS EN ISO 9001:2000 registered company. for identification fittings have butyl or EPDM black O-rings. Working pressure range : 16 bar at -24°C to 110°C.XPress Fittings provide electrical continuity when pressed/installed with copper tube to BS EN 1057 R250/R290. XPress Fittings should not be painted or come into contact with cleaning products, paint, grease, flux, mineral oil, adhesive or other solvent based materials during installation, lagging or after installation.

Product Specification

Approved by WRAS & KIWA
Brand Pegler
Standards BS EN 1057 R250/R290
Demountable/Reusable No
Designation Water
Kitemark BS 8537:2010
Manufactured/Approved To BS EN ISO 9001:2008
Material Copper
Operating Pressure Working pressure range : 16 bar at -24°C to 110°C
Size 54 mm
Sub Brand Xpress Water
Type Elbow
