Part Number: 23472
Manufacturer's Part Number: 11785

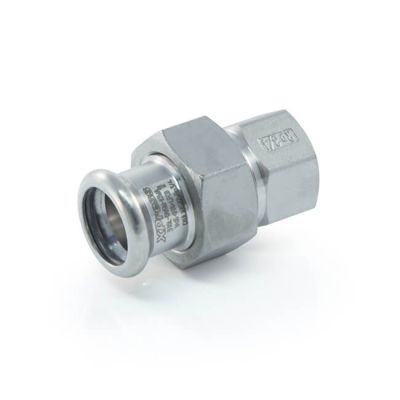

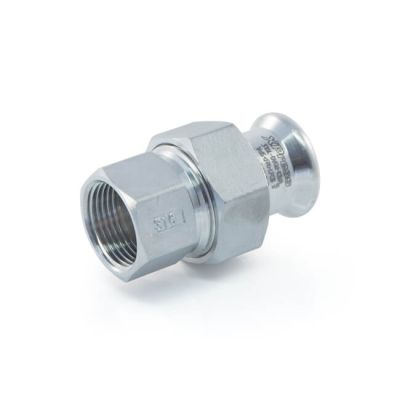

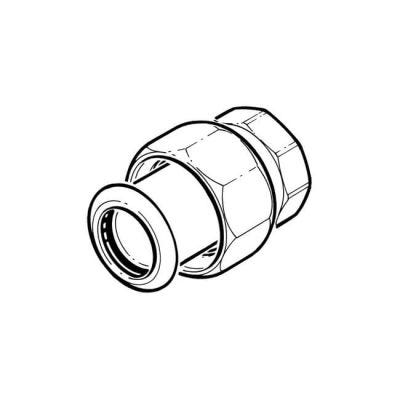

Xpress Stainless Female Union - 15mm x 1/2" BSP F
Press-fit 15mm x 1/2" Female Union - XPress 316L Stainless steel fitting designed for use on potable water (including water purified by reverse osmosis), pharmaceutical, health care, food processing, low temperature hot water and chilled water applications. Press fitting ends have a Leak Before Press (LBP) feature to indicate if joint has not been pressed. For identification fitting has EPDM black O-rings. Fitting provides electrical continuity when pressed. Fitting should not be painted or come into contact with cleaning products, paint, grease, flux, mineral oil, adhesive or other solvent based materials during installation, lagging or after installation. For installation of the fitting a REMS tool and tongs are required.
BSP Explained
Product Specification
Brand | Pegler |
Approved by | WRAS |
Kitemark | BS 8537:2010 |
Standards | BS EN 1057 R250/R290 |
Manufactured/Approved To | BS EN ISO 9001:2008 |
Connection | M Press x BSP Female |
Demountable/Reusable | No |
Designation | Water |
Equal/Reducing | Adapting |
Fitting Type | Union |
Material | Stainless Steel |
Max. Operating Pressure | 16 bar |
Size | 15 mm x 1/2" |
Sub Brand | Xpress Water |
Suitable Application | Area where water quality and hygiene are crucial, pharmaceutical and health care environments, food processing. |
Type | Union |
