Part Number: 22700
Manufacturer's Part Number: 38593

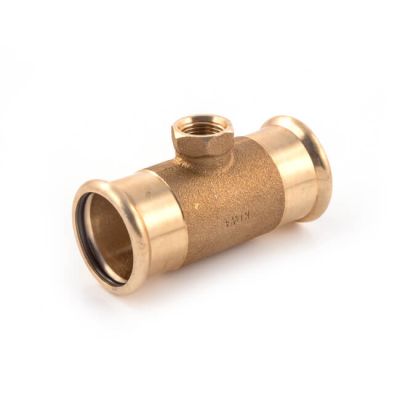

Press-fit XPress water tee. XPress Copper fittings are manufactured from copper or copper alloy and are designed for use on hot and cold water services, vented and unvented closed circuit heating and chilled water applications. Press Fitting ends have a Leak Before Press (LBP) feature to indicate if joint has not been pressed.
WRAS and KIWA approved. BSI Kitemark (BS 8537). Complies with DVGW Arbeitsblatt W534. Manufactured by a BS EN ISO 9001 registered company. for identification fittings have butyl or EPDM black O-rings. Working pressure range : 16 bar at -24°C to 110°C.XPress Fittings provide electrical continuity when pressed/installed with copper tube to BS EN 1057/+A1 R250/R290. XPress Fittings should not be painted or come into contact with cleaning products, paint, grease, flux, mineral oil, adhesive or other solvent based materials during installation, lagging or after installation
WRAS and KIWA approved. BSI Kitemark (BS 8537). Complies with DVGW Arbeitsblatt W534. Manufactured by a BS EN ISO 9001 registered company. for identification fittings have butyl or EPDM black O-rings. Working pressure range : 16 bar at -24°C to 110°C.XPress Fittings provide electrical continuity when pressed/installed with copper tube to BS EN 1057/+A1 R250/R290. XPress Fittings should not be painted or come into contact with cleaning products, paint, grease, flux, mineral oil, adhesive or other solvent based materials during installation, lagging or after installation
Product Specification
Brand | Pegler |
Sub Brand | XPress Water |
Approved by | WRAS & KIWA |
Kitemark | BS 8537 |
Standards | BS EN 1057/+A1 R250/R290 |
Manufactured/Approved To | BS EN ISO 9001 |
Connection | M Press x BSP Female |
Designation | Water |

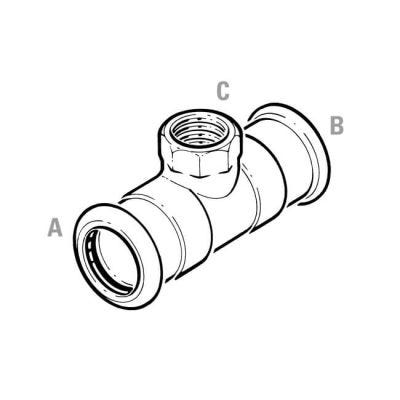

End Dimension (A) | 28 mm |
End Dimension (B) | 28 mm |
End Dimension (C) | 3/4" |
Equal/Reducing | Adapting |
Material | Copper |
Max. Operating Pressure | 16 bar |
Size | 28 mm |
Type | Tee |
