Part Number: 14054

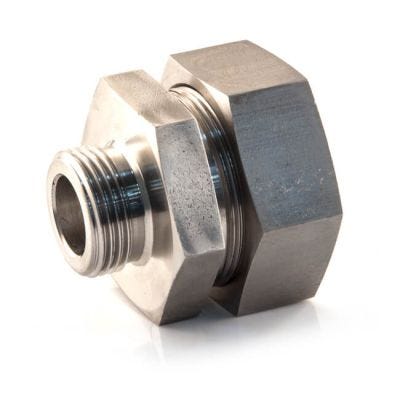

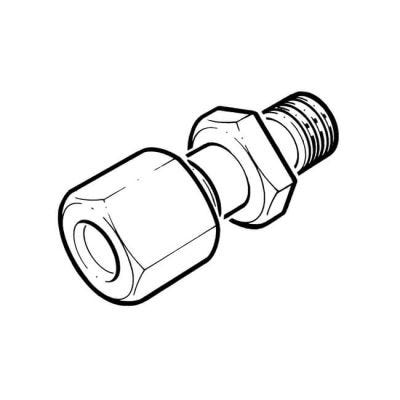

Stainless Steel M Stud Coupling 10mm x 1/2" BSP PM
10 mm x 1/2" Stainless Steel Single Ferrule Male Stud Coupling Compression x BSP Parallel fittings are generally known as DIN 2353 Single Ferrule fittings. Designed for use with stainless steel tubes. Ideal for installations where secure leak proof joints are essential. The metric compression sizes given refer to the size (outside diameter) of the tube which accepts the fitting.
|Connection||Compression x BSP Parallel|
|Fitting Type||Stud Coupling|
|Operating Pressure||Maximum working pressure range at 30°C : 6 to 12 mm 250 bar, 15 to 22 mm 160 bar, 28 to 42 mm 100 bar.|
|Type||Male Stud Coupling|
