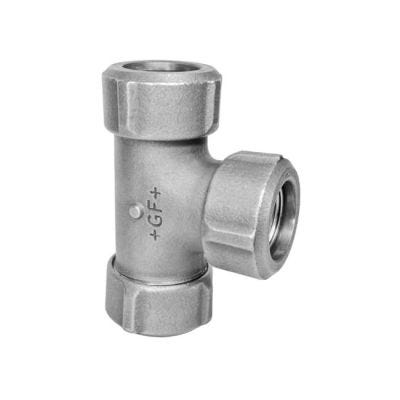

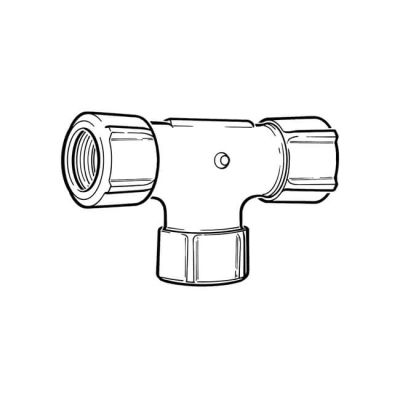

Compression fitting to join yellow gas MDPE pipe together and for transition; i.e. to join yellow gas MDPE pipe to steel pipe (pipe to BS EN 10255 and BS EN 10220). Manufactured by a BS EN ISO 9001 registered company. The pipe is inserted into the fitting to the predetermined length and the nut tightened. Special tools are not required. Instructions are supplied with each fitting. Fittings for use with MDPE pipes are supplied complete with insert stiffeners.
For underground use, fittings should be wrapped with corrsion protective tape (P/N's 9321, 9322 or 9323).

Suitable for Natural Gas and LPG.
If the installation is to be in accordance to GIS/PL3, then galvanised fittings are required.

Nut and body material: Galvanised.
Seal material: Nitrile compound.
Maximum pressure at 20°C 7 bar (maximum operating pressure is dependent on MDPE pipe specification and standard).
Angular deflection: the joint will cope with a misalignment of the connected pipe of up to 6° inclusive.
Threads: Male, BSP taper to ISO 7-1 female, BSP parallel to ISO 7-1.
