3/4" BSP TF Angled 'T' Type Filter

£46.97 £39.14
£46.97 £39.14
More product options available

Part Number: 9830

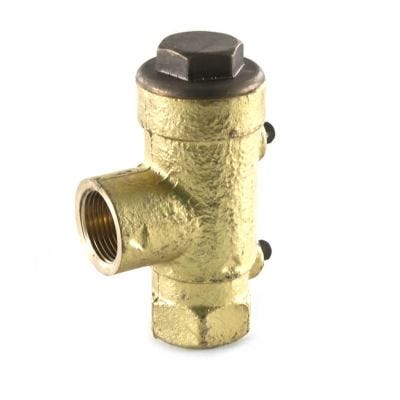

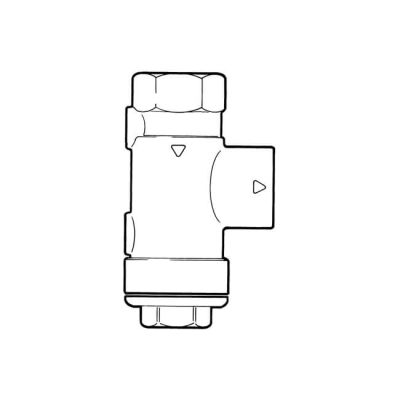

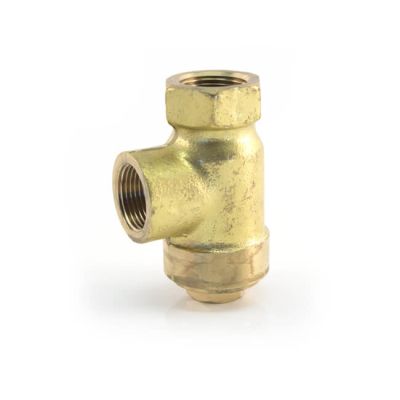

3/4" BSP TF Angled 'T' Type Filter

In-line ‘Y’ type or angled ‘T’ type gas filters with 200 micron stainless steel mesh which can be removed for cleaning. Suitable for general removal of particles from gas which could damage a meter or regulator. Manufactured in the UK in accordance with British Gas plc specifications.

Seal: Nitrile ‘O’ ring.

Suitable for Natural Gas & LPG.

Product Specification

Connection BSP Taper Female to BS 21 (ISO 7-1)
Material Brass
Max. Operating Pressure steam - 13.8 bar at 260°C, cold water, oil, gas - 32 bar non-shock.
Mesh Type 200 micron
Size 3/4"
Sulphidation 200 micron
Type T Type
