Part Number: 18543

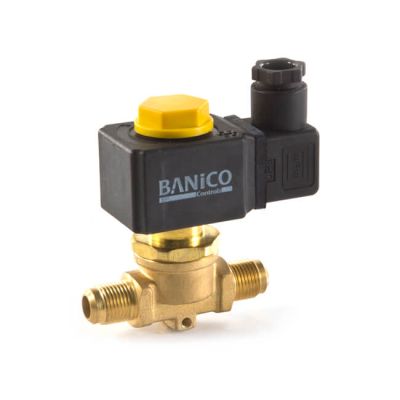

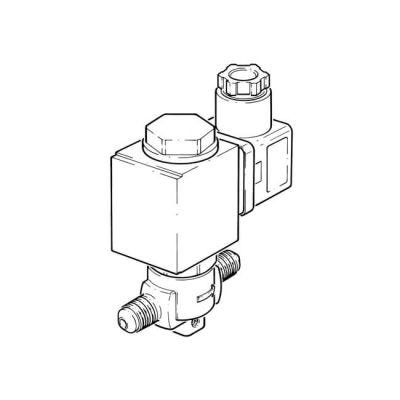

3/8" Flare - Solenoid Valve - 24 V AC
2/2 way direct acting normally closed solenoid valves (flare and solder), suitable for air conditioning and refrigeration.
For refrigerants R134a, R22 and R404a.
Seal: fluorine-rubber.
Phase replacement ring: copper. Other parts: stainless steel.
Coils: Power: 8 watts. Class F (155°C). 100% ED.
For refrigerants R134a, R22 and R404a.
Seal: fluorine-rubber.
Phase replacement ring: copper. Other parts: stainless steel.
Coils: Power: 8 watts. Class F (155°C). 100% ED.
Product Specification
| Dimensions | 3/8" 60 mm face to face x 27 mm deep x 78 mm high |
| For Use With | R134a, R22 & R404a |
| KV | 3.5 l/min. |
| Material | Brass |
| Orifice | 2.5 mm |
| Pressure | Min. 0 bar, MOPD 30 bar |
| Temperature Range | -40 to 180°C. |
| Type | Solenoid Valve |
