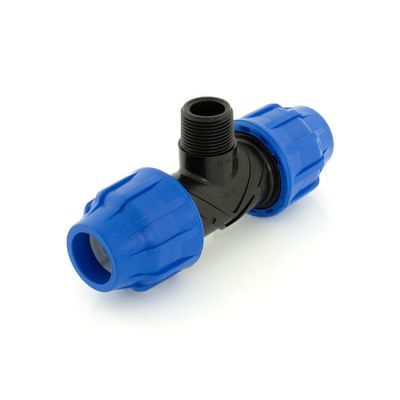

Above and Below Ground MDPE Male Branch Tee - 32 x 32mm x 3/4"

Name: Above and Below Ground MDPE Male Branch Tee - 32 x 32mm x 3/4"
Brand: Unbranded
SKU: 26306
Price: 4.71 GBP
Availability: InStock

Compression fitting for use above and below ground. Can be used for potable water applications with blue and black MDPE pipe manufactured to BS EN 12201.
Plastic pipe stiffeners are required for a rigid joint connection.

BSP Explained

BES Ltd., British Standard Pipe Thread Identification Chart.

BSP – This is an abbreviation used for British Standard Pipe threads, and the size refers to the nominal bore (or internal diameter) of the steel pipe the thread was originally designed for, not the diameter of the actual thread. Please measure your maximum (or major) thread diameter in millimetres and use the chart below to identify the BSP size you need.

Further advice can be obtained from our Technical Team if you are still unsure.

BSP Size	Actual Diameter of Thread
1/8"	9.728 mm
1/4"	13.157 mm
3/8"	16.662 mm
1/2"	20.995 mm
3/4"	26.441 mm
1"	33.249 mm
1 1/4"	41.910 mm
1 1/2"	47.803 mm
2"	59.614 mm
2 1/2"	75.184 mm
3"	87.884 mm

The information above is provided for guidance only. The data shown represents extracts interpreted by us of the British Standards. If more clarification and accuracy is required, you should refer to the relevant British Standard.

Product Specification

Connection	Compression x BSP TM
Designation	Water

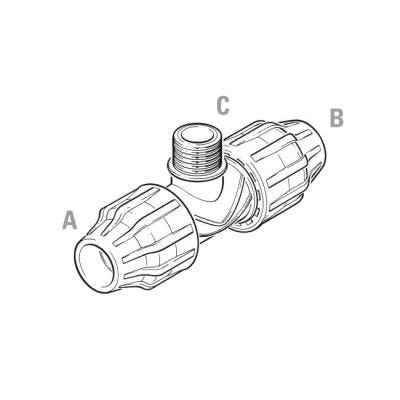

End Dimension (A)	32 mm
End Dimension (B)	32 mm
End Dimension (C)	3/4"
Equal/Reducing	Adapting
Material	Polypropylene
Size	32 mm
Type	Tee
