Part Number: 26892

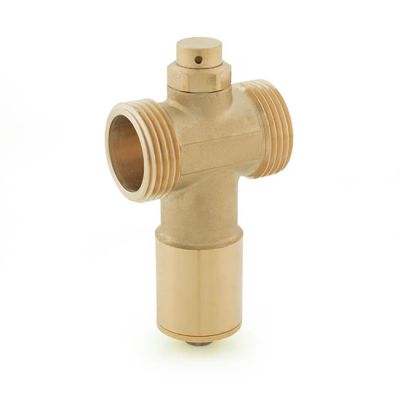

Anti-freeze Valve - 1.1/4" BSP PM
Discharges water from the system when the temperature drops to 3°C, preventing ice from forming and causing costly damage.
Note: Install in a vertical position outdoors with the outlet facing downwards. The valve must be protected from rain, snow and direct sunlight. For the device to work properly, keep the system under pressure at all times, even when the valve is draining.
Opening temp.: 3°C.
Closing temp.: 4°C.
BSP Explained
See More >
Specification
Connection | BSP PM |
Dimensions | H 114 x W 61 mm |
Material | Brass Body |
Max. Operating Pressure | 10 bar |
Size | 1.1/4" |
Type | Anti-freeze Valve |
