Part Number: 26890

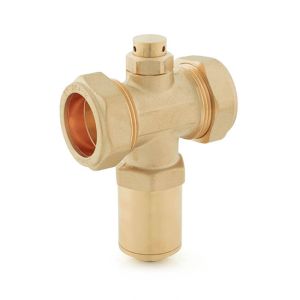

Anti-freeze Valve - 28mm Compression
The Anti-freeze Valve - 28mm Compression is designed to discharge water from a system when temperatures drop to 3°C, effectively preventing ice formation and potential damage. Constructed with a durable brass body, this valve is suitable for outdoor installations where it helps maintain system safety in colder weather.
This valve features a temperature-sensitive mechanism that opens at 3°C and closes at 4°C, ensuring timely water discharge to avoid freezing.
For optimal performance, it should be installed vertically with the outlet facing downwards, ensuring it is protected from rain, snow, and direct sunlight.
The system should remain pressurised even during draining to maintain proper functionality.
The Anti-freeze Valve provides reliable freeze protection, making it ideal for safeguarding water systems against cold weather conditions.
Alternative Options available.
Benefits
- Discharges water at 3°C to prevent freezing
- Brass body construction for durability
- Opens at 3°C, closes at 4°C for precise temperature control
- Suitable for outdoor use with vertical installation
- Maximum operating pressure of 10 bar
Specification
Connection | Compression |
Dimensions | H 107 x W 72.5 mm |
Material | Brass Body |
Max. Operating Pressure | 10 bar |
Size | 28 mm |
Type | Anti-freeze Valve |
