Part Number: 21382

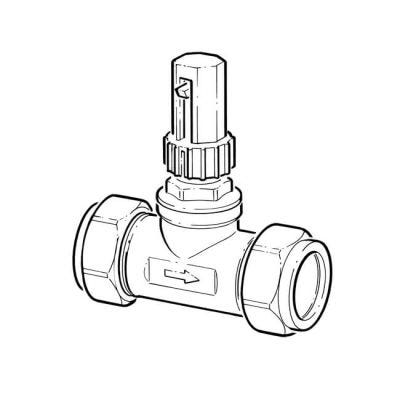

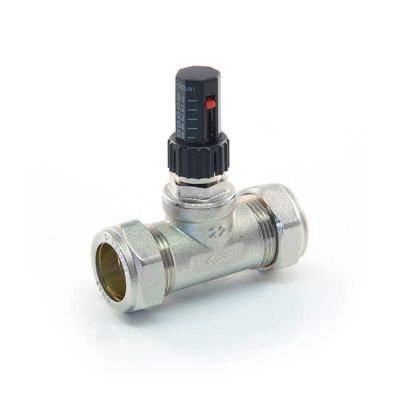

Automatic By-Pass Differential Valve - 22mm Angled
Automatic differential by-pass valve, angled with 22 mm compression connections and visual pressure indicator for setting.
Max. working pressure : 10 bar.
Max. working temp. : 100°C.
Adjustment range : 0.1 to 0.5 bar.
Flow capacity : 1 to 5 m³/h.
Max. working pressure : 10 bar.
Max. working temp. : 100°C.
Adjustment range : 0.1 to 0.5 bar.
Flow capacity : 1 to 5 m³/h.
Product Specification
| Adjustment Range | 0.1 to 0.5 bar |
| Max. Operating Temperature | 100°C |
| Pattern | Angled |
| Pressure | Max. 10 bar |
| Type | Angled Bypass Valve |
