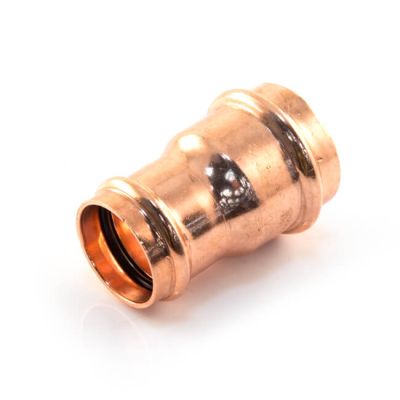

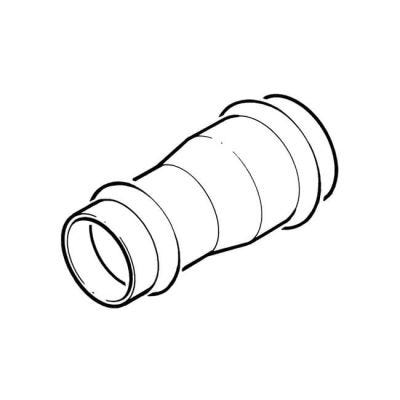

IBP CONEX 22mm x 15mm >B< press reducing coupler, designed for use with hard, half-hard and soft copper tube, without the need for flames, fluxes or filler metals. A connection can be made on new and retro-fit installations, even when the line is wet. The fittings can be used on drinking water and other hot and cold systems, including central heating. M profile jaws may be used to assemble 15 to 28 mm >B< Press fittings, subject to the criteria in the technical declaration attached below.
Benefits
Reduced installation time and cost
Flame-free connection - no hot works permit required
Leak before press assists identification of unpressed joints
Secure, permanent 3-point press
No soldering or brazing consumables required
WRAS, DVGW and KIWA approved. Manufactured to BS 8537 by a BS EN ISO 9001 registered company. Each fitting is permanently marked >B< and the size. Copper (EN 12165 CW024A) body Black EPDM O-ring
