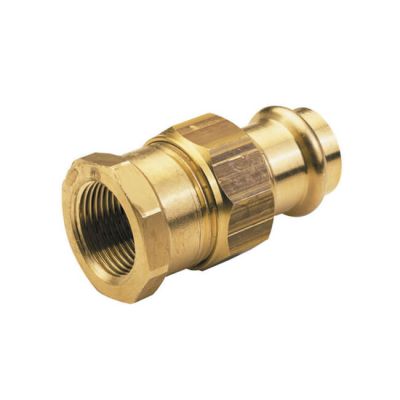

>B< Press-fit Union Connector - 35mm x 1.1/4" BSP F

The IBP CONEX >B< press fitting system, designed for use with hard, half-hard and soft copper tube, without the need for flames, fluxes or filler metals. A connection can be made on new and retro-fit installations, even when the line is wet. The fittings can be used on drinking water and other hot and cold systems, including central heating.

Benefits

Reduced installation time and cost
Flame-free connection - no hot works permit required
Leak before press assists identification of unpressed joints
Secure, permanent 3-point press
No soldering or brazing consumables required

WRAS, DVGW and KIWA approved. Manufactured to BS 8537 by a BS EN ISO 9001 registered company. Each fitting is permanently marked >B< and the size.Copper (EN 12165 CW024A)
Black EPDM O-ring

Shop more from IBP Conex >B< Press-Fit

Connector

Coupler

Elbow

Reducer

Stop End

Tee

REMS ACC Kits & Tongs

Kits

Contour V Tongs

Product Specification

Brand	IBP Conex >B<
Approved by	WRAS, DVGW and KIWA
Standards	BS 8537
Manufactured/Approved To	BS EN ISO 9001:2008
Connection	B Press x BSP Female
Demountable/Reusable	No
Designation	Water
Equal/Reducing	Adapting
Fitting Type	Union Connector
Material	Copper
Size	35 mm x 1 1/4"
Sub Brand	B Press
Type	Union Connector
