Part Number: 27198
Manufacturer's Part Number: BP-V-3P-PBSP-1512

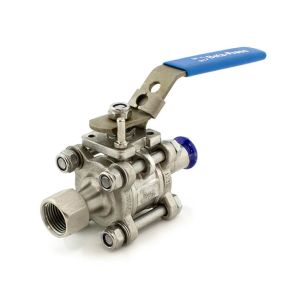

Beta-Press 3 Piece Ball Valve 316L S/S - 15mm x 1/2"
Beta-Press 316L stainless steel Press-fit M profile fitting has black EPDM O ring(s) with leak before pressed feature, designed for use above ground on potable water, low temperature heating and hot water, compressed air (oil free) and chilled water applications.
Certified by DVGW W534.
Manufactured by a BS EN ISO 9001 registered company.
Beta-Press fittings provide electrical continuity when pressed and should not be painted or come into contact with cleaning products, paint, grease, flux, mineral oil, adhesive or other solvent based materials during installation, lagging or after installation.
For installation of the fitting a press tool and M press tongs/jaws are required.
Certified by DVGW W534.
Manufactured by a BS EN ISO 9001 registered company.
Beta-Press fittings provide electrical continuity when pressed and should not be painted or come into contact with cleaning products, paint, grease, flux, mineral oil, adhesive or other solvent based materials during installation, lagging or after installation.
For installation of the fitting a press tool and M press tongs/jaws are required.
See More >
Specification
Brand | Beta-Press |
Approved by | DVGW |
Standards | BS EN ISO 9001 |
Connection | Press-fit x BSP F |
Demountable/Reusable | No |
Designation | Water |
Fitting Type | Ball Valve |
Material | 316L Stainless Steel |
Max. Operating Pressure | 16 bar |
Operating Temperature | -10 to 110°C |
Profile | M |
Size | 15 mm x 1/2 |
Suitable Application | Above ground on potable water, low temperature heating and hot water, compressed air (oil free) and chilled water services. |
Type | Stainless Steel Ball Valve |
