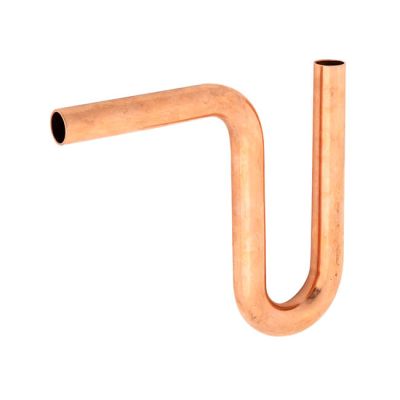

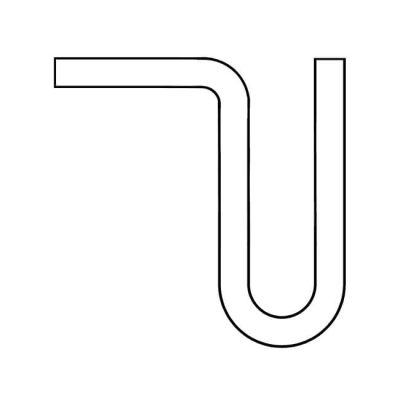

Conex >B< MaxiPro Press-fit Suction Line P-Trap - 7/8"

Name: Conex >B< MaxiPro Press-fit Suction Line P-Trap - 7/8"
SKU: 26746
Price: 30.19 GBP
Availability: InStock

CONEX >B< MaxiPro suction line P-trap designed for use with hard, half-hard and soft copper tube in both air conditioning and refrigeration applications, without the need for flames, fluxes or filler metals. Permanently marked >B< MaxiPro with a pink mark and the size. Please refer to the attached table below for refrigerant compatibility.

Benefits
Reduced installation time and cost
Flame-free connection - no hot works permit required
Leak before press assists identification of unpressed joints
Secure, permanent 3-point press
No soldering or brazing consumables required
EN 14276-2, ISO 14903, ISO 5149-2, EN 378 compliant and UL Listed.

Product Specification

Brand	IBP Conex >B<
Sub Brand	MaxiPro
Connection	B Press MaxiPro
Designation	Air Conditioning & Refrigeration
Equal/Reducing	Equal
Fitting Type	Suction Line P Trap
Material	Copper
Max. Operating Pressure	48 bar
Profile	MaxiPro
Size	7/8"
Standard	EN 14276-2, ISO 14903, ISO 5149-2, EN 378 compliant & UL Listed.
Temperature Range	-40 to 121° C
Type	P Trap
