Cooksafe PGCS003 Ventilation & Gas Proving System

£489.20 £407.67
£489.20 £407.67
More product options available

Part Number: 19874

Cooksafe PGCS003 Ventilation & Gas Proving System

Cooksafe PGCS003 is a gas pressure and ventilation proving system for compliance with BS 6173 and IGEM/UP/19, for use in commercial kitchens.
Features a control panel with removable key switch emergency cut-off, LED status indicators and connections for gas safety shut-off valve, also a pressure transmitter to constantly monitor for low gas pressure and a fan pressure switch to monitor ventilation airflow.
Unit must be used with an BS EN 161/+A3 approved solenoid or electro-hydraulic gas safety shut-off valve.

Product Specification

Amperage 3 A fused
Brand Cooksafe
Standards BS 6173 and IGEM/UP/19
Dimensions H 179 x W 128 x D 59 mm

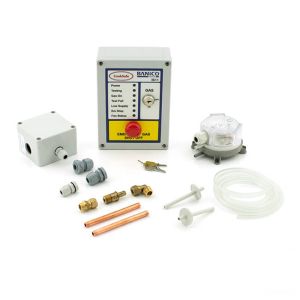

Kit Contents 1 x Provengas Cooksafe control panel
1 x pressure transmitter
1 x air pressure switch
1 x duct APS connector kit
2 x copper pipe (8 mm x approx. 10 cm long)
1 x brass tail (R 1/4 tail to 8 mm tube)
1 x 90° fitting (R 1/4 male elbow x 8 mm nut/olive)
1 x straight fitting (R 1/4 male x 8 mm nut/olive)
2 x large cable glands (M16)
1 x small cable glands (PG7)
Power Supply 230 V, 50 Hz
Suitable Application Cooksafe PGCS003 is a gas pressure and ventilation proving system for use in commercial kitchens.
Type Gas Proving Kit
