Part Number: 25231
Manufacturer's Part Number: HS50

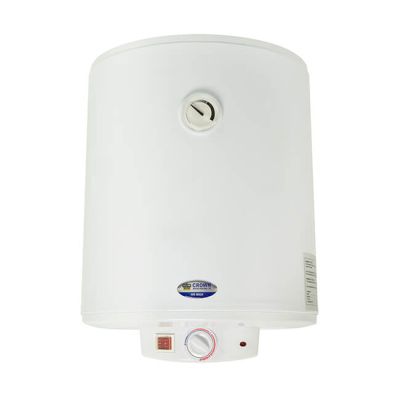

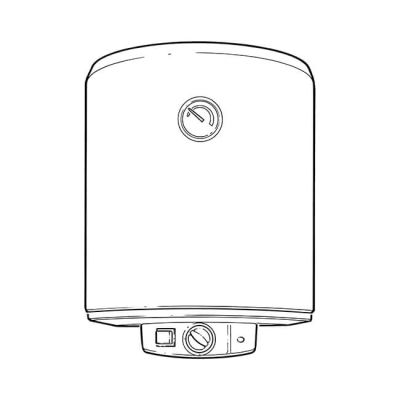

Crown HiSTORE Wall-Mounted Unvented Hot Water Cylinder - 50 Litres
Crown HiSTORE wall-mounted unvented glass-lined hot water cylinder with sacrificial anode test button and gauge, temperature and pressure relief valve (7 bar, 90°C factory fitted) and a 3 kW stainless steel immersion heater with thermostat, incorporating manual reset thermal cut-out.
Suitable for for showers, hairdressing salons and other hot water systems where the cold mains water supply is between 1 and 16 bar.
Includes built-in wall hanging bracket.
Supplied with unvented kit which includes:
Expansion vessel with wall bracket,
Pressure reducing valve (preset to 3 bar),
Manifold assembly,
Non return valve,
Expansion relief valve (6 bar),
700 mm braided hose,
Tundish (15 to 22 mm),
2 x dielectric adaptor.
Suitable for for showers, hairdressing salons and other hot water systems where the cold mains water supply is between 1 and 16 bar.
Includes built-in wall hanging bracket.
Supplied with unvented kit which includes:
Expansion vessel with wall bracket,
Pressure reducing valve (preset to 3 bar),
Manifold assembly,
Non return valve,
Expansion relief valve (6 bar),
700 mm braided hose,
Tundish (15 to 22 mm),
2 x dielectric adaptor.
See More >
WEIGHT & SIZE RESTRICTIONS
Some delivery options may not be available
Specification
Brand | Crown |
Application | Hot water systems where the cold mains water supply is between 1 and 16 bar. |
Capacity | 50 litres |
Connection | 1/2" BSP |
Dimensions | H 880 x 400 mm dia. |
Heat Time | 55 mins (from 15 to 65°C) |
Power Supply | 240 V |
Pressure Range | 1 to 16 bar |
Size | 50 litres |
Type | Water Heater |
Weight | 17.5 kg |
