Part Number: 9696

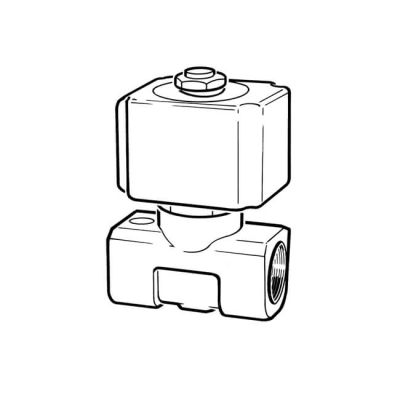

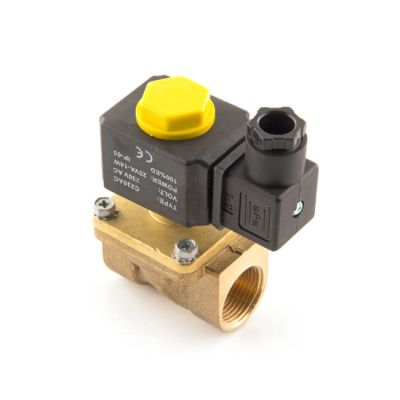

Directly Activated Water Solenoid Valve - 3/8"
BSP F x F, mains operated directly activated water solenoid valve with brass body and stainless steel plunger. Normally closed directly activated valve supplied complete with 240V actuator coil and Din connector.
BES Ltd., British Standard Pipe Thread Identification Chart.
BSP – This is an abbreviation used for British Standard Pipe threads, and the size refers to the nominal bore (or internal diameter) of the steel pipe the thread was originally designed for, not the diameter of the actual thread. Please measure your maximum (or major) thread diameter in millimetres and use the chart below to identify the BSP size you need.
Further advice can be obtained from our Technical Team if you are still unsure.
BSP Size | Actual Diameter of Thread |
---|---|
1/8" | 9.728 mm |
1/4" | 13.157 mm |
3/8" | 16.662 mm |
1/2" | 20.995 mm |
3/4" | 26.441 mm |
1" | 33.249 mm |
1 1/4" | 41.910 mm |
1 1/2" | 47.803 mm |
2" | 59.614 mm |
2 1/2" | 75.184 mm |
3" | 87.884 mm |
The information above is provided for guidance only. The data shown represents extracts interpreted by us of the British Standards. If more clarification and accuracy is required, you should refer to the relevant British Standard.
Product Specification
Connection | BSP F x F |
Differential Pressure | Max. 6 bar |
For Use With | Water, air, diesel oil and inert gases (NOT Natural Gas or LPG). |
Material | Brass Body & Stainless Steel |
Suitable Application | Heating systems |
Temperature | Controlled fluid temperature: -10 to 140°C. |
Type | Water Solenoid Valve |
